222CLM Sloping Land House Plan – Full Construction Plans | 4 Bedroom Family Home | Free Custom Modifications

Modern Sloping Land House Plan with Undercroft Garage

The 222CLM is a thoughtfully designed 4-bedroom home created specifically for sloping and hillside blocks. Featuring spacious open-plan living, a central kitchen with walk-in pantry, two separate living areas, and an oversized garage beneath the home, this design makes the most of challenging sites while delivering a practical family-friendly layout.

Ideal for sloping land, elevated sites, and split-level construction, the 222CLM combines modern styling with functional living spaces and excellent street appeal.

Complete Construction Plans & Working Drawings Package – Ready for Building Approval

Free Custom Modifications to Suit Your Land and Lifestyle

 Please Note: After purchase, we will contact you to obtain your building site address and confirm any modifications or custom changes required before we commence and complete your plans.

Plan Features

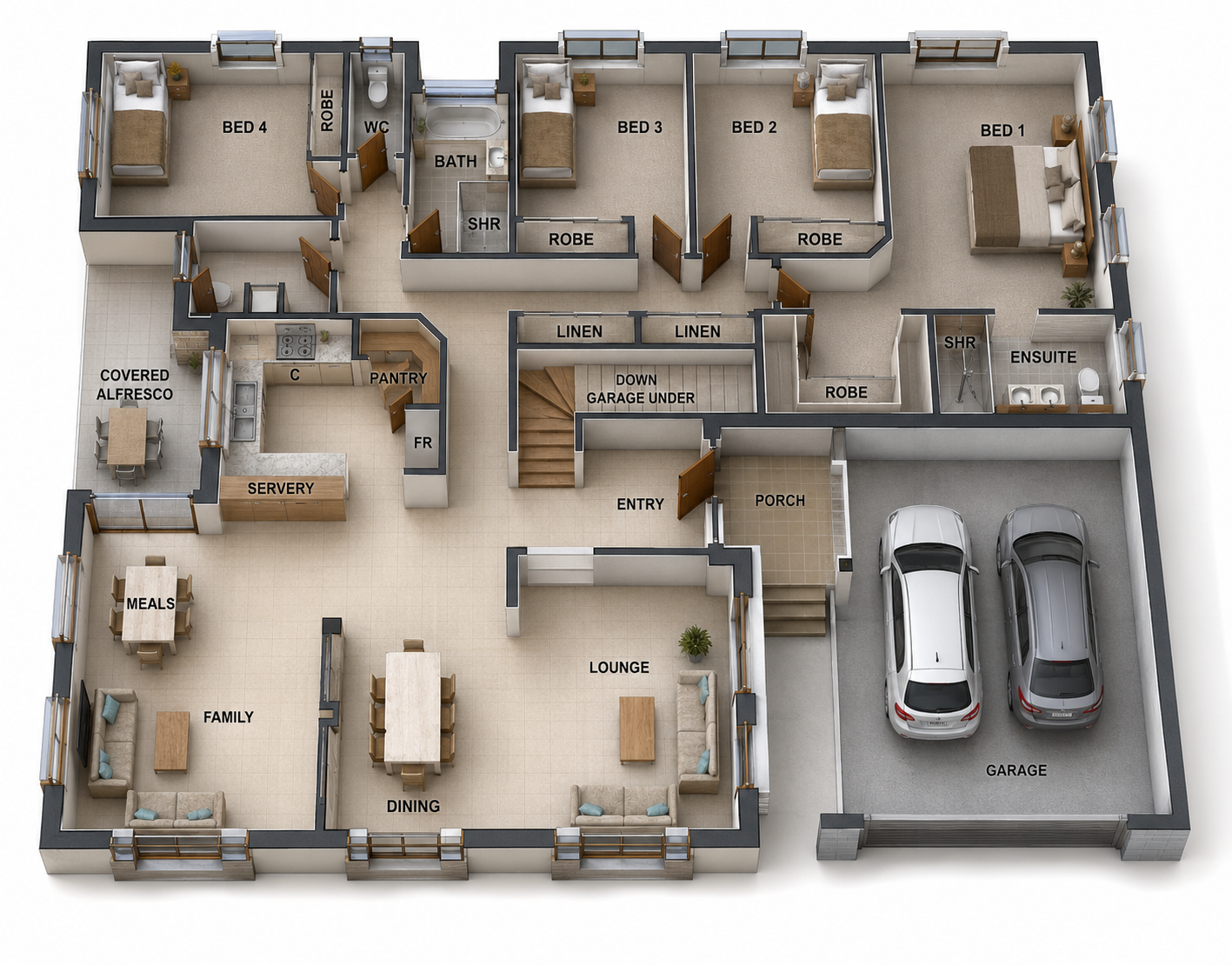

• 4 Bedroom Home Design
• 2 Bathrooms
• Large Open-Plan Living Area
• Separate Family Room
• Central Kitchen Design
• Walk-In Pantry
• Robes to All Bedrooms
• Covered Alfresco Patio
• Double Garage
• Designed for Sloping & Hillside Blocks
• Modern Family Home Layout

Home Dimensions

Metric

• Width: 12.7 m
• Length: 16.6 m
• Living Area: 177.2 m²
• Garage Area: 45.1 m²
• Total Area: 222.0 m²

Imperial

• Width: 42 ft
• Length: 54 ft 7 in
• Living Area: 1,776 sq ft
• Garage Area: 485 sq ft
• Total Area: 2,390 sq ft

Room Sizes – Metric

• Bed 1: 3.5 m × 4.4 m
• Bed 2: 3.4 m × 3.0 m
• Bed 3: 3.4 m × 3.0 m
• Bed 4: 2.8 m × 3.0 m
• Family Room: 4.9 m × 3.8 m
• Living Room: 6.0 m × 4.2 m

Room Sizes – Feet & Inches

• Bed 1: 11' 6" × 14' 8"
• Bed 2: 11' 2" × 9' 10"
• Bed 3: 11' 2" × 9' 10"
• Bed 4: 9' 2" × 9' 10"
• Family Room: 16' 1" × 12' 6"
• Living Room: 14' 0" × 12' 0"

Perfect For

• Sloping Blocks
• Hillside Sites
• Split-Level Construction
• Elevated Building Lots
• Rural Properties
• View-Oriented Homes
• Family Living

What's Included in Your Construction Plans / Working Drawings Package

Your professionally prepared Construction Plans (Working Drawings) package includes:

✓ Dimensioned Floor Plans
✓ Exterior Elevations (All Sides)

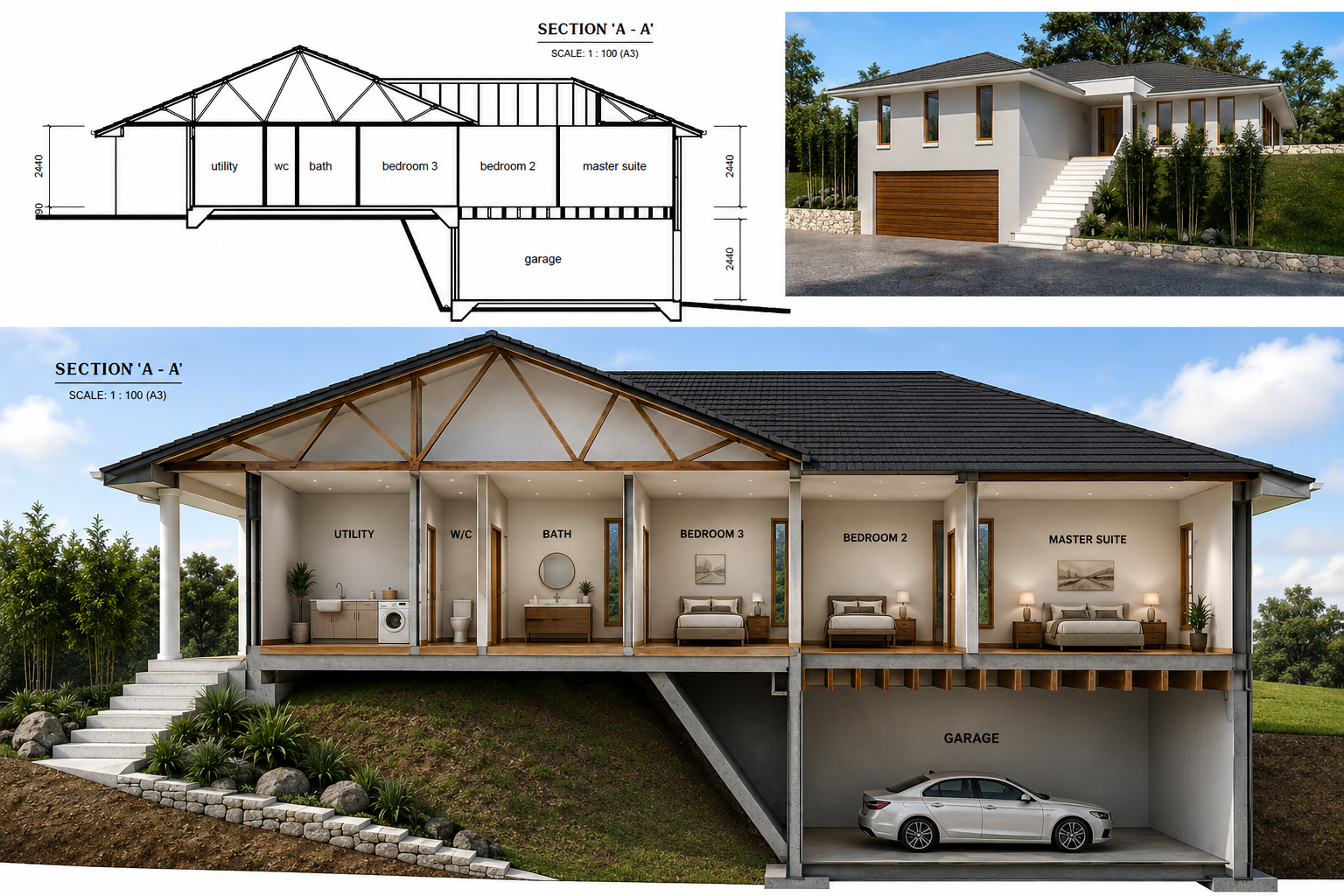

✓ Building Sections and Construction Details
✓ Roof Plan
✓ Door and Window Schedules
✓ Electrical Layout Plan
✓ Lighting and Power Point Locations
✓ Internal Room Dimensions and Areas
✓ Building Notes and Specifications
✓ Structural Bracing and Tie-Down Details
✓ Footing and Foundation Design (site-specific soil test required)
✓ Licensed Structural Engineering Documentation
✓ 3D Colour Perspectives / Facade Images
✓ Site-Specific Modifications to Suit Your Land and Requirements
✓ PDF Digital Delivery

 Please Note:

• Final footing and slab designs require a site-specific soil test.
• We will contact you after purchase to obtain your building site address and discuss any required modifications.
• Additional council requirements may vary depending on your local authority and building location.

Structural Engineering Included

All plans in this package include structural engineering prepared by a licensed professional engineer.

Please note that final footing and slab designs are specific to your site conditions and require a soil test for the property where you intend to build. Once you provide the building site address, we can assist with obtaining soil test pricing and arranging this service on your behalf.
