286.8CA Hillside Retreat – 4 Bedroom Pole Home Plan
Complete Construction Plans & Working Drawings Package – Ready for Building Approval
Free Custom Modifications to Suit Your Land and Lifestyle
Modern Sloping Land Home Design for Acreage Living

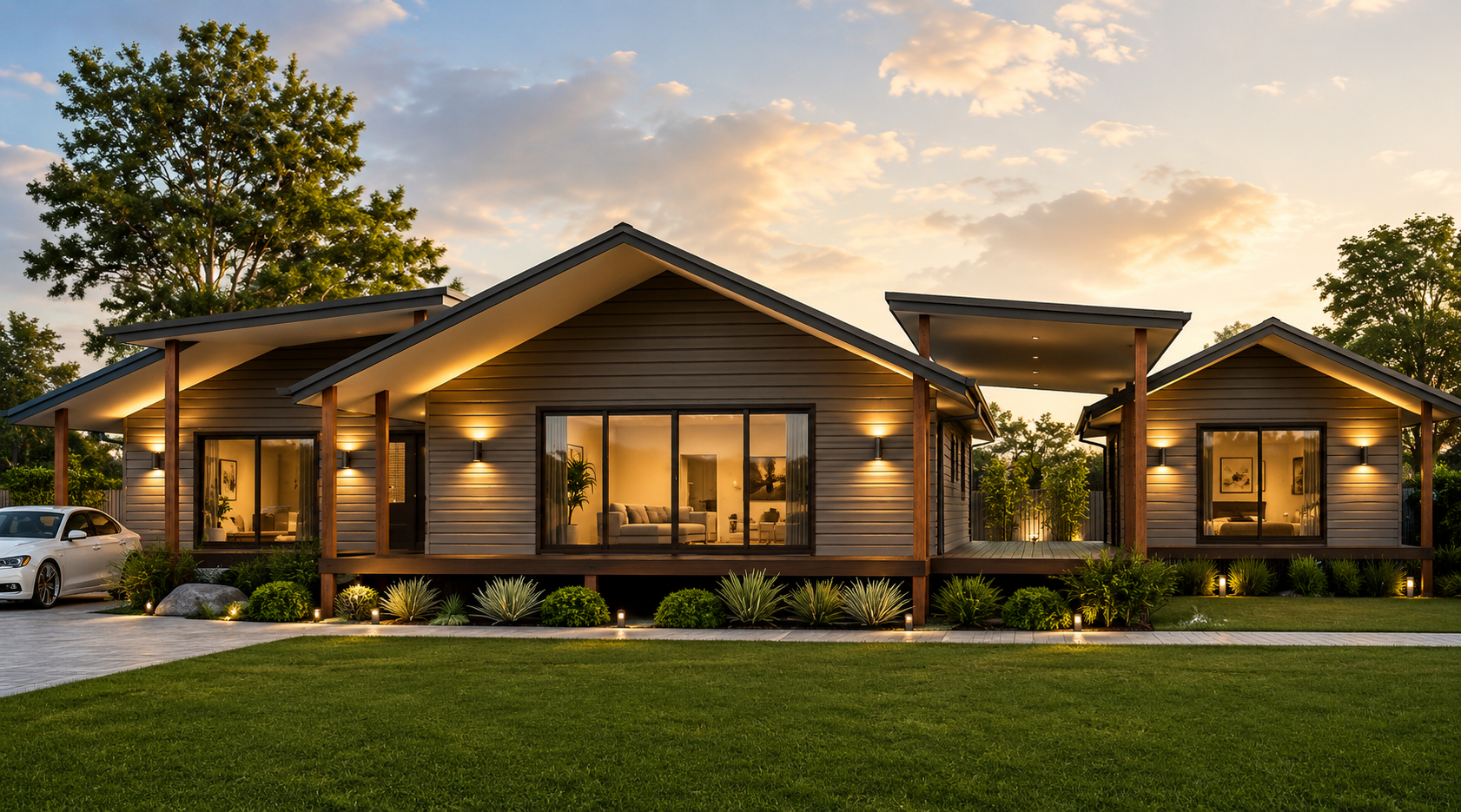

The 286.8CA Hillside Retreat is a spacious 4-bedroom pole home designed specifically for sloping land, elevated sites, and acreage properties. Featuring a practical split-wing layout, large entertaining decks, open-plan living, and a walk-in pantry, this modern hillside home combines country living with contemporary style.
Whether you are building on a rural property, bush block, coastal hillside, or elevated acreage site, the 286.8CA provides a functional and attractive solution that takes advantage of views and outdoor living.

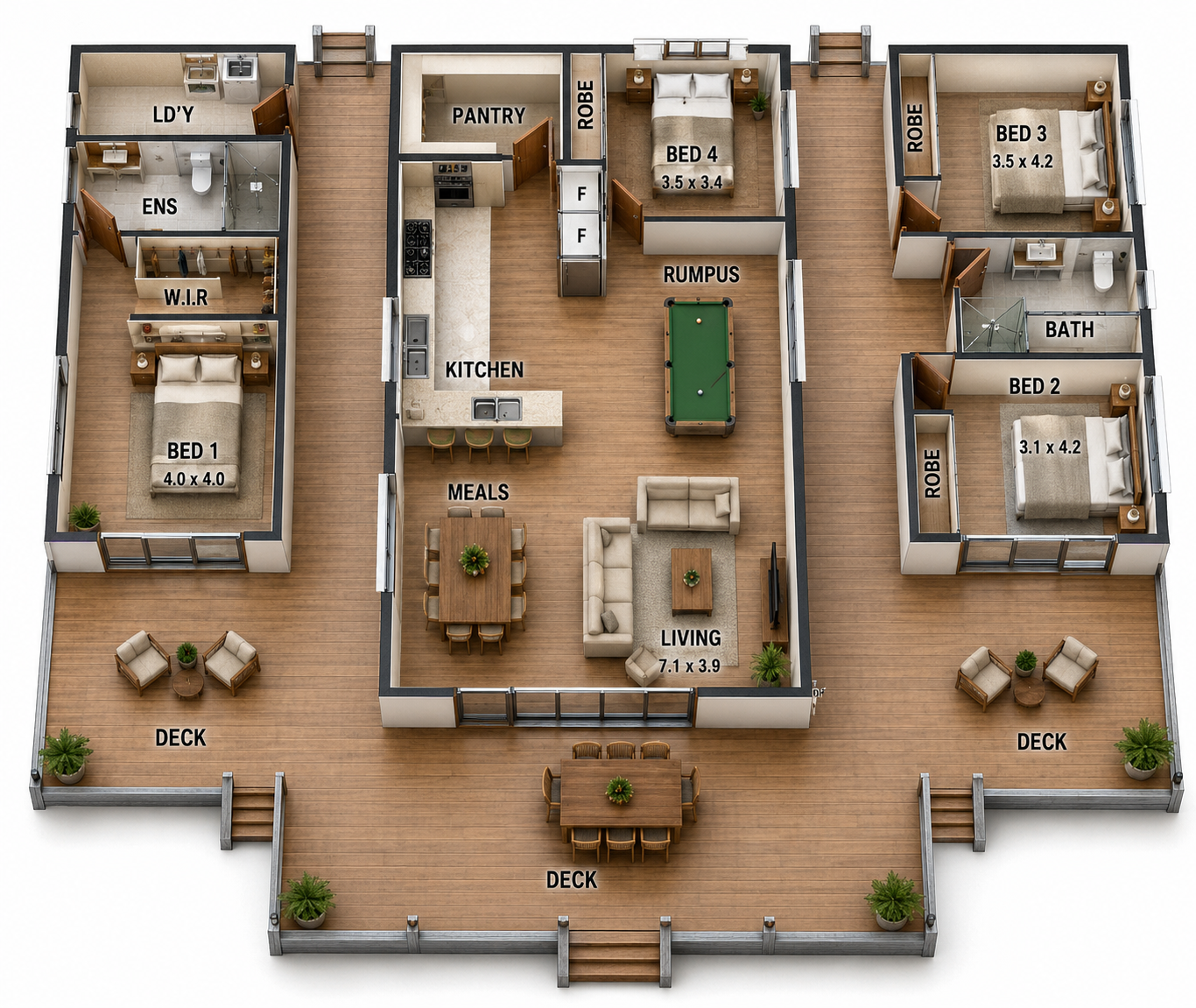

Plan Features
- 4 Bedroom Home Design
- Master Bedroom with Ensuite & Walk-In Robe
- Open Plan Living, Dining & Kitchen
- Large Walk-In Pantry
- Separate Rumpus / Family Area
- Modern Pole Home Design
- Large Wraparound Deck Areas
- Designed for Sloping Land & Hillside Sites
- Ideal for Acreage & Rural Properties
- Contemporary Australian Lifestyle Layout
Metric Sizes
| Description | Size |
|---|---|
| Living Area | 161.4 m² |
| Deck Area | 125.4 m² |
| Total Area | 286.8 m² |
| Width | 19.66 m |
| Length | 15.46 m |
Imperial Sizes
| Description | Size |
| Living Area | 1,766 sq ft |
| Deck Area | 1,650 sq ft |
| Total Area | 3,087 sq ft |
| Width | 64' 6" |
| Depth | 50' 9" |
What's Included in Your Construction Plans / Working Drawings Package
Your professionally prepared Construction Plans (Working Drawings) package includes:
✓ Dimensioned Floor Plans
✓ Exterior Elevations (All Sides)
✓ Building Sections and Construction Details
✓ Roof Plan
✓ Door and Window Schedules
✓ Electrical Layout Plan
✓ Lighting and Power Point Locations
✓ Internal Room Dimensions and Areas
✓ Building Notes and Specifications
✓ Structural Bracing and Tie-Down Details
✓ Footing and Foundation Design (site-specific soil test required)
✓ Licensed Structural Engineering Documentation
✓ 3D Colour Perspectives / Facade Images
✓ Site-Specific Modifications to Suit Your Land and Requirements
✓ PDF Digital Delivery
Please Note:
• Final footing and slab designs require a site-specific soil test.
• We will contact you after purchase to obtain your building site address and discuss any required modifications.
• Additional council requirements may vary depending on your local authority and building location.
Structural Engineering Included
All plans in this package include structural engineering prepared by a licensed professional engineer.
Please note that final footing and slab designs are specific to your site conditions and require a soil test for the property where you intend to build. Once you provide the building site address, we can assist with obtaining soil test pricing and arranging this service on your behalf.
