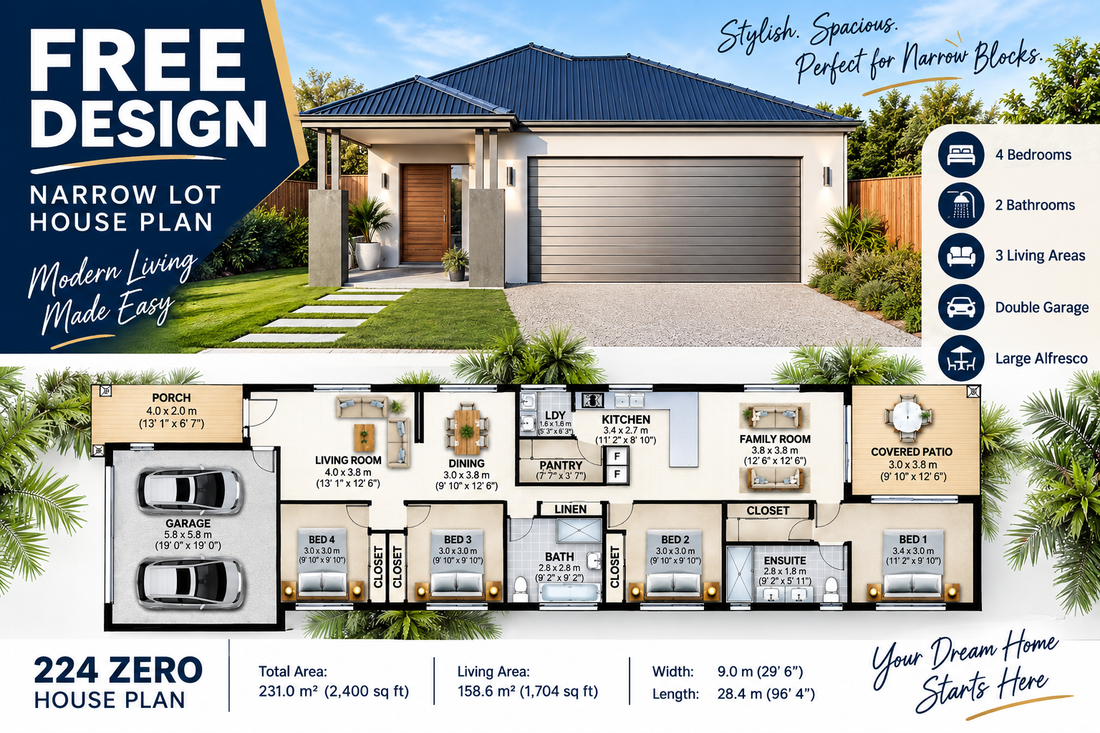

FREE 4 Bedroom Narrow Lot House Plan – 224 Zero | 2,400 Sq Ft Family Home

Ask the Builder – Free House Plan Download

Building on a narrow block doesn't necessarily mean you have to compromise on bedrooms, living areas or outdoor entertaining space.

This week's Ask the Builder Free House Plan is the 224 Zero, a modern 4-bedroom family home designed for a block frontage of approximately 9.0 metres / 29'6".

The design includes 4 bedrooms, 2 bathrooms, 3 living areas, a double garage and a large covered alfresco, all within a practical single-storey layout.

Best of all, we're making the 224 Zero Concept House Plan available as a FREE PDF download so you can explore the design, discuss it with your builder and decide whether it could be the starting point for your new home.

FREE House Plan – Designed for a Narrow Block

Narrow residential blocks are becoming increasingly common, particularly in established suburbs, new subdivisions and areas where larger properties are being divided.

The challenge is fitting everything a modern family wants into a narrower building footprint.

The 224 Zero has been designed around a width of approximately 9 metres, while still providing separate living spaces, four bedrooms, a double garage and outdoor entertaining.

Instead of simply making the house smaller, the design uses its longer footprint to create clearly defined zones throughout the home.

224 Zero House Plan Features

The design includes:

• 4 Bedrooms
• 2 Bathrooms
• 3 Living Areas
• Large kitchen
• Separate pantry
• Dining area
• Family room
• Separate living room
• Double garage
• Large covered alfresco
• Separate laundry
• Built-in storage
• Single-storey design
• Narrow 9-metre-wide footprint
• Metric and imperial dimensions

House Size & Building Areas

Overall Width: 9.0m / 29'6"
Overall Length: 28.4m / 96'4"
Living Area: 158.6m² / 1,704 sq ft
Total Area: 231.0m² / approximately 2,400 sq ft

This makes the 224 Zero an interesting option for homeowners who need a relatively narrow home but don't want to give up the space normally associated with a larger family design.

Room Sizes

Ask the Builder – What I Like About This Design

One of the difficulties with a narrow house is avoiding the feeling of a long corridor with rooms simply positioned along each side.

With the 224 Zero, the living spaces help break the house into different zones.

The main living and dining areas provide one family space, while the separate family room towards the rear provides another.

This can be particularly useful for families with children. One area can be used for television or children's activities while another remains available for quieter living.

The covered alfresco at the rear also extends the living area outdoors and provides a natural connection between the family room and backyard.

Four Bedrooms Without Going Two Storey

Another advantage of this design is that all four bedrooms are accommodated on a single level.

For some owners, building upwards is either undesirable or unnecessary.

A longer narrow-lot design can provide an alternative, particularly where the property has enough depth to accommodate the approximately 28.4-metre overall house length.

Of course, the house itself is only part of the equation. Your property's setbacks, site coverage and local planning requirements will determine whether a particular design can actually fit your land.

Why Start With a FREE Concept House Plan?

One of the biggest mistakes people can make when planning a new home is spending too much money on detailed drawings before they know whether the basic design suits their site, lifestyle and budget.

That's why we're developing our Ask the Builder Free House Plan series.

Start with the concept.

Study the floor plan.

Show it to your family.

Talk to builders.

Think about what you would change.

Then decide whether it's worth taking the design to the next stage.

A concept plan can also give a builder something tangible to look at when discussing preliminary construction costs.

What's Included in the FREE 224 Zero Download?

The downloadable 224 Zero Free House Plan PDF includes:

✓ House design and floor plan
✓ Main features
✓ Metric and imperial room sizes
✓ Building areas and overall dimensions
✓ Concept-design information
✓ Construction-plan upgrade information
✓ Customisation options

📥 DOWNLOAD THE 224 ZERO HOUSE PLAN FREE

4 Bedrooms | 2 Bathrooms | 3 Living Areas | Double Garage | Large Alfresco

231.0m² / approximately 2,400 sq ft

Important – This Is a Concept Design

The free 224 Zero plan is a concept/preliminary house design.

It is not a site-specific, engineering-certified or permit-ready construction plan.

Before building, the design may need to be adapted to suit your property and local requirements, including structural engineering, foundations, soil conditions, wind classification, energy requirements, bushfire requirements, planning controls, setbacks and other applicable approvals.

The purpose of the free design is to give you an affordable starting point before proceeding with detailed documentation.

Want to Change the 224 Zero?

You don't have to use the floor plan exactly as shown.

If you like the overall concept but want to make it better suited to your family, simply mark your changes on the plan or send us your own sketch and notes.

For example, you may want to change the kitchen, enlarge the main bedroom, rearrange a bathroom, modify the garage, move windows or doors, change the façade or alter part of the living area.

We can use your ideas as the basis for a customised concept plan.

Ready to Build? Upgrade to Full Construction Plans

Once you've decided the design works for you, contact us about upgrading to a Full Construction Plan Set.

This lets you begin with the free concept, investigate the design and preliminary costs, make your changes and then move into detailed plans when you're ready.

More FREE House Plans Coming

The 224 Zero is part of our growing Ask the Builder Free House Plan collection.

We'll continue adding free house designs covering different block sizes, lifestyles and housing types.

The aim is simple: give people more ideas and better information before they spend thousands of dollars designing or building a new home.

Download the FREE 224 Zero House Plan

If you're considering building on a narrow block, download the plan, study the layout and see what ideas you can take from it.

224 Zero – 4 Bedroom Narrow Lot House Plan
9.0m Wide | 4 Bedrooms | 2 Bathrooms | 3 Living Areas | Double Garage | Alfresco
