200 Wakefield Skillion Roof Garage Apartment Plan | 2 Bed Home Office | 199.3 m² | 2,158 Sq Ft
200 Wakefield Skillion Roof Garage Apartment Plan | 2 Bed Home Office | 199.3 m² | 2,158 Sq Ft
Couldn't load pickup availability
199.3 m² | 2,158 Sq Ft | 2 Bed | 3 Bath | Home Office | 200 Wakefield Skillion Roof Garage Apartment Plan
Modern Garage Apartment with Home Office & Workshop
The 200 Wakefield Skillion Roof Garage Apartment is a spacious and versatile two-level design that combines practical vehicle storage with comfortable modern living. Featuring 2 bedrooms, a dedicated home office, oversized double garage, workshop space, and a large entertaining balcony, this design is ideal for acreage properties, guest accommodation, multi-generational living, or as a premium garage apartment residence.
The contemporary skillion roof creates a striking architectural appearance while maximizing natural light and open-plan living upstairs.
Complete Construction Plans & Working Drawings Package – Ready for Building Approval
Free Custom Modifications to Suit Your Land and Lifestyle
Please Note: After purchase, we will contact you to obtain your building site address and confirm any modifications or custom changes required before we commence and complete your plans.
Key Features
- 2 Bedrooms
- Dedicated Home Office
- 2 Bathrooms
- Separate Powder Room
- Large Open-Plan Living & Dining Area
- Modern Kitchen
- Balcony with BBQ Entertaining Area
- Workshop Area
- Laundry
- Oversized Double Garage
- Contemporary Skillion Roof Design
- Ideal Garage Apartment or Carriage House Design
Plan Dimensions
Width: Refer to floor plan
Length: Refer to floor plan
Metric Area Sizes

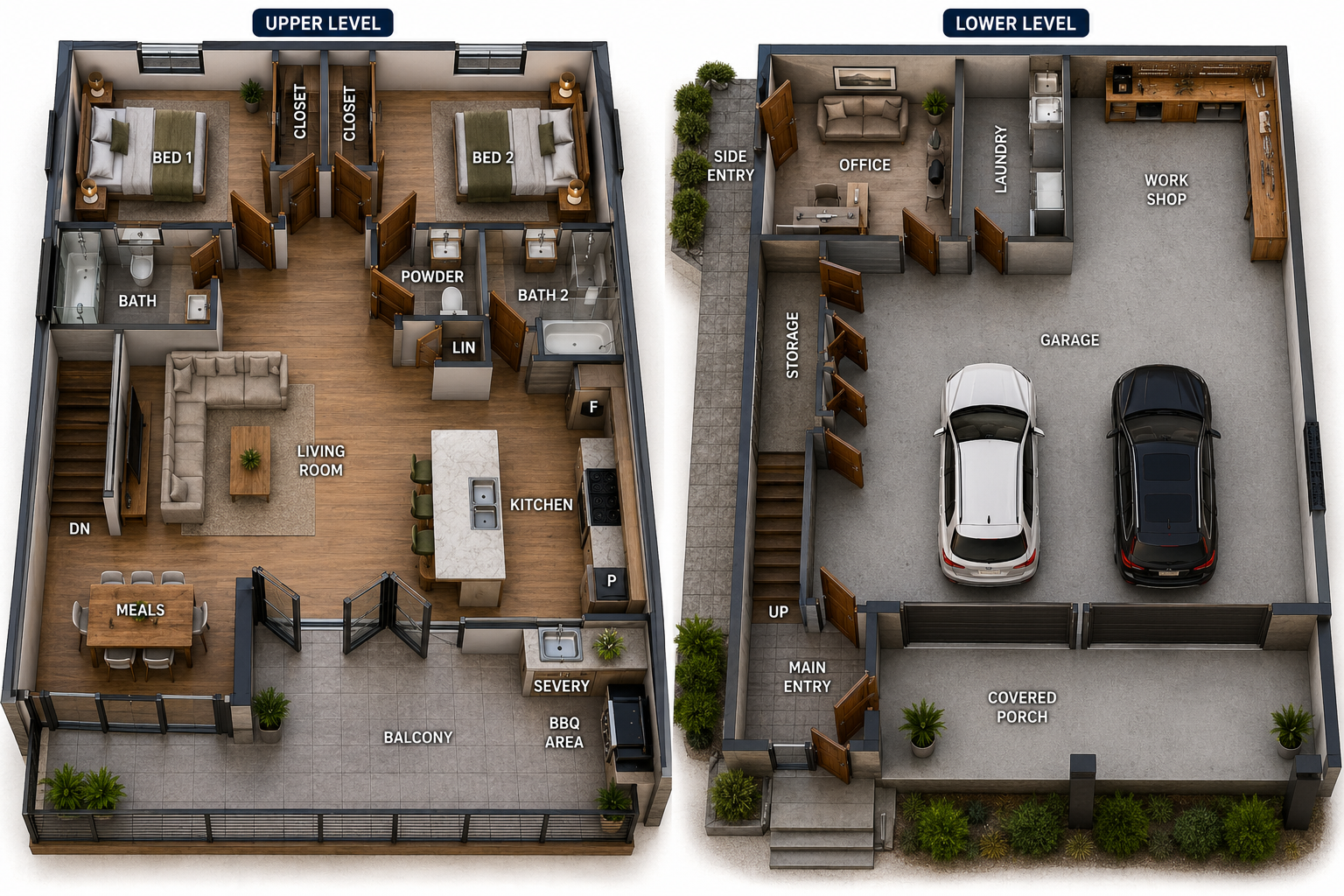

- Lower Level: 100.9 m²
- Upper Living: 77.9 m²
- Balcony: 20.5 m²
Total Area: 199.3 m²
Imperial Area Sizes
- Lower Level: 1,120 Sq Ft
- Upper Living: 838 Sq Ft
- Balcony: 200 Sq Ft
Total Area: 2,158 Sq Ft
Room Sizes
Metric
- Bed 1: 3.6 m x 3.3 m
- Bed 2: 3.4 m x 3.3 m
- Living Room: 6.0 m x 4.2 m
Feet & Inches
- Bed 1: 11'11" x 11'11"
- Bed 2: 11'11" x 11'11"
- Living Room: 20'0" x 13'9"
What's Included in Your Construction Plans / Working Drawings Package
Your professionally prepared Construction Plans (Working Drawings) package includes:
✓ Dimensioned Floor Plans
✓ Exterior Elevations (All Sides)
✓ Building Sections and Construction Details
✓ Roof Plan
✓ Door and Window Schedules
✓ Electrical Layout Plan
✓ Lighting and Power Point Locations
✓ Internal Room Dimensions and Areas
✓ Building Notes and Specifications
✓ Structural Bracing and Tie-Down Details
✓ Footing and Foundation Design (site-specific soil test required)
✓ Licensed Structural Engineering Documentation
✓ 3D Colour Perspectives / Facade Images
✓ Site-Specific Modifications to Suit Your Land and Requirements
✓ PDF Digital Delivery
Please Note:
• Final footing and slab designs require a site-specific soil test.
• We will contact you after purchase to obtain your building site address and discuss any required modifications.
• Additional council requirements may vary depending on your local authority and building location.
Structural Engineering Included
All plans in this package include structural engineering prepared by a licensed professional engineer.
Please note that final footing and slab designs are specific to your site conditions and require a soil test for the property where you intend to build. Once you provide the building site address, we can assist with obtaining soil test pricing and arranging this service on your behalf.
