312.8 Duplex HIP – 6 Bedroom Concept & Modification Starter Pack

Explore a modern duplex concept with two three-bedroom homes, each with its own living spaces, study nook, alfresco and single garage.

The 312.8 Duplex HIP Concept & Modification Starter Pack from Ask the Builder brings together floor plan illustrations, exterior artist’s impressions and a practical modification worksheet in one 9-page digital PDF.

Use it to visualise the arrangement, record your ideas and prepare a brief for your builder or designer.

CONCEPT ONLY — NOT FOR CONSTRUCTION OR BUILDING APPROVAL.

Discover the layout

Each mirrored home shows:

• Three bedrooms with robes

• Main bedroom with ensuite

• Main bathroom and separate toilet

• Kitchen, dining and lounge areas

• Study nook

• Laundry and linen storage

• Single garage

• Entry porch and side alfresco

The complete duplex contains six bedrooms and two single garages.

What’s included?

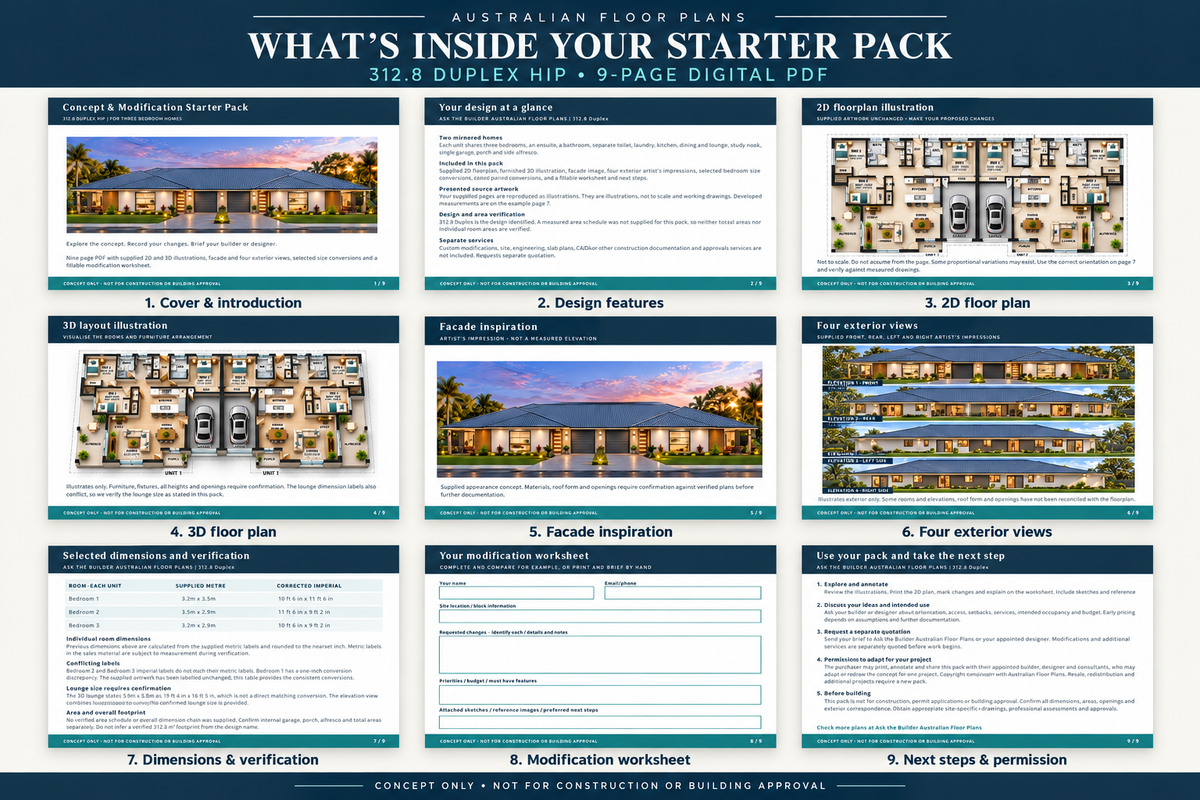

Your nine-page PDF contains:

1. Cover and introduction

2. Design features and pack inclusions

3. Furnished 2D floor plan illustration

4. Furnished 3D layout illustration

5. Facade artist’s impression

6. Four exterior artist’s impressions: front, rear, left and right

7. Selected bedroom dimensions, corrected imperial conversions and verification notes

8. Fillable modification worksheet

9. Next steps and permission to adapt the concept for one project

The exterior images illustrate the appearance concept. They are not measured elevations.

Start planning your changes

Print the 2D floor plan and mark your proposed changes. Use the worksheet to identify the unit and room, explain your priorities and provide your site details.

You can complete the worksheet in a compatible PDF reader or print it and write by hand.

Submit your brief to Ask the Builder / Australian Floor Plans for a separate quotation for modifications or further drawings, or discuss it with your appointed designer.

Personalised changes and additional documentation are not included in this purchase.

Dimensions and area information

Selected bedroom dimensions are provided in metric and imperial units.

Some labels in the supplied illustrations contain conflicting dimensions. The artwork is preserved unchanged, with a separate corrected conversion table and notes identifying information that requires confirmation.

The illustrations are not to scale and must not be measured from.

“312.8 Duplex” is the design identifier. This starter pack does not provide a verified total building area, individual unit area schedule or overall footprint dimensions.

Please read before purchasing

This is an illustrative starter pack for exploring a concept and preparing a design brief. It is not a full construction drawing set and cannot be used for construction, permit applications or building approval.

Dimensions, areas, openings, roof geometry and the relationship between the floor plan and exterior images require verification. Appropriate site-specific drawings, professional assessments and approvals are needed before building.

Not included

Construction drawings, measured elevations, roof plans, site plans, engineering, certification, electrical or plumbing drawings, window and door schedules, material lists, cost estimates, CAD/Revit files or personalised modifications.

Further services are quoted separately.

Digital delivery

You receive one 9-page PDF download. No physical item is supplied.

Permission for one project

You may print, annotate and share the pack with your appointed builder, designer and consultants for one project. Your team may adapt or redraw the concept for that project.

Copyright remains with Australian Floor Plans. Resale, redistribution and use for additional projects require written permission.

Prepared by Chris Morris, retired builder with more than 50 years of building experience.

Explore the concept, record your ideas and take the next step with Ask the Builder.
