260.4 Blue Haven – Modern Hip Roof Home Design

The 260.4 Blue Haven Gable is a spacious country-inspired family home designed for modern living and entertaining. Featuring 5 bedrooms, three separate living zones, a home cinema, butler’s pantry, and covered alfresco area, this impressive home design offers both comfort and practicality for larger families.

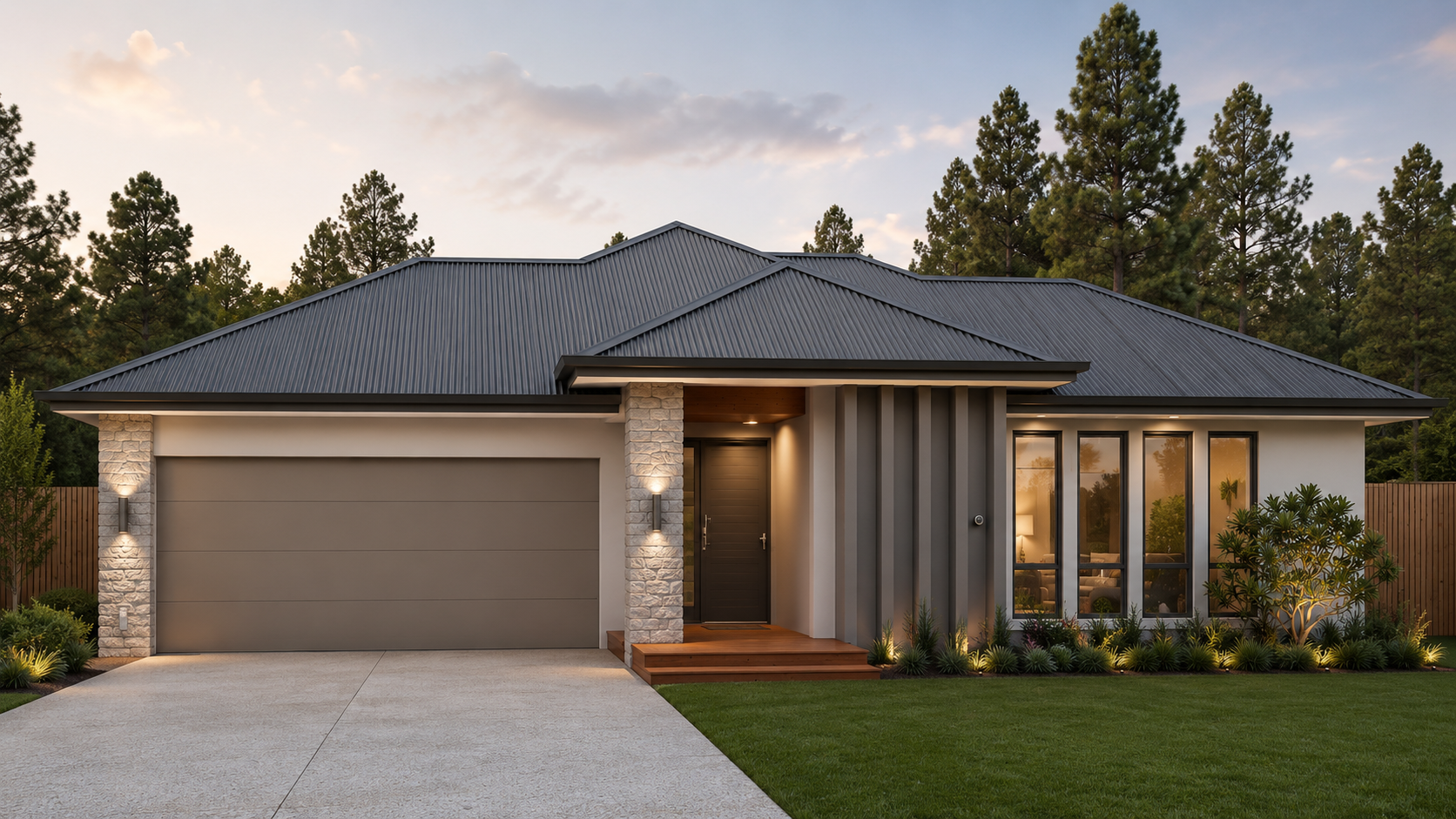

With a striking gable façade and functional open-plan layout, the Blue Haven combines modern style with country charm.

Complete Construction Plans & Working Drawings Package – Ready for Building Approval

Free Custom Modifications to Suit Your Land and Lifestyle

 Please Note: After purchase, we will contact you to obtain your building site address and confirm any modifications or custom changes required before we commence and complete your plans.

KEY FEATURES

✔ 5 Bedrooms
✔ Study Nook
✔ 3 Separate Living Areas
✔ Home Cinema Room
✔ Large Kitchen + Butler’s Pantry
✔ Open Plan Family Living
✔ Covered Alfresco Patio
✔ Double Garage with Internal Entry
✔ Modern Country Gable Design

PLAN FEATURES

• 5 Bedroom Family Home
• Three Living Rooms
• Walk-In Pantry / Butler’s Pantry
• Garage with Internal Entry
• Rear Alfresco Area
• Home Cinema Room
• Large Open Living Design

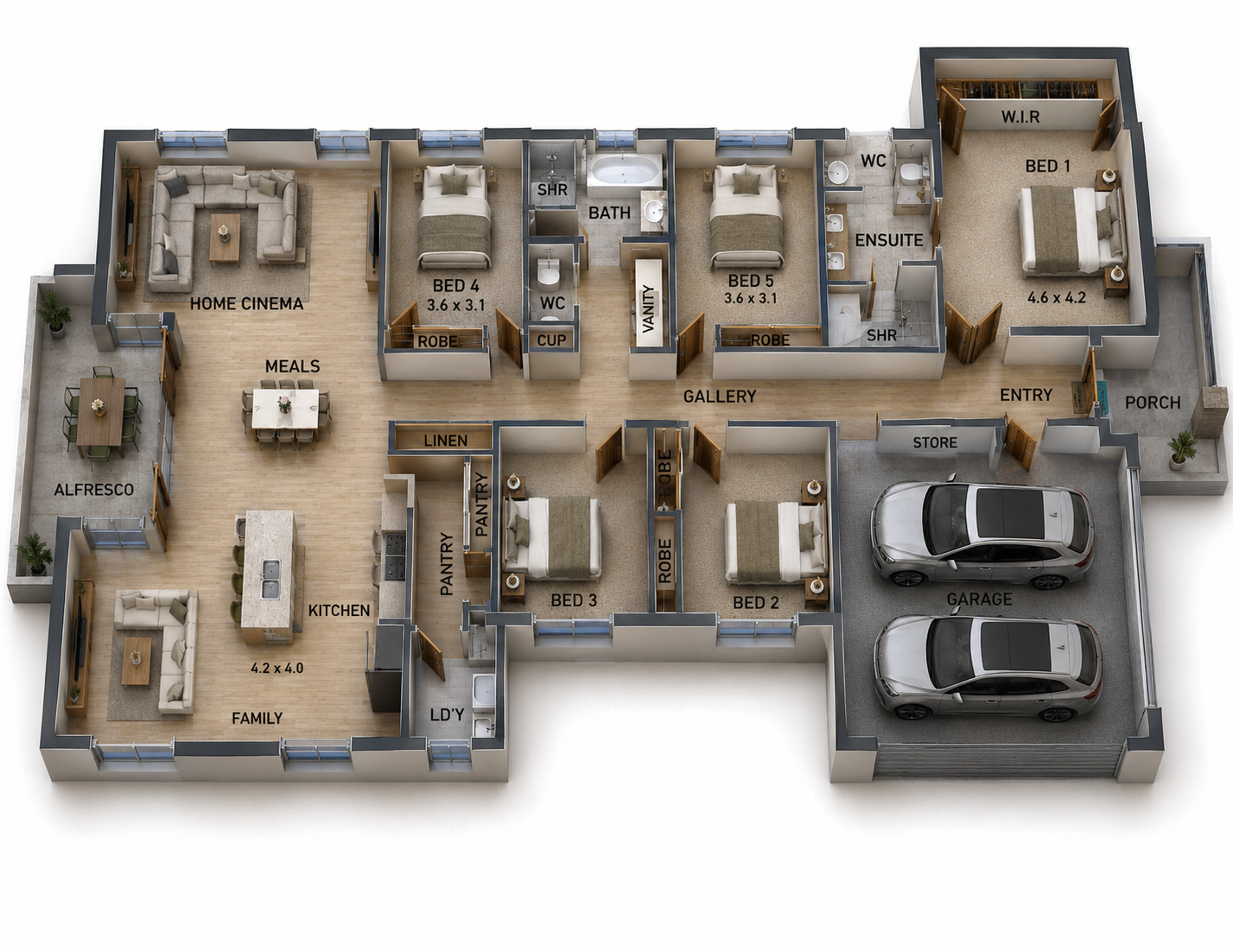

PLAN SIZES

Width: 13.6 meters
Length: 24.4 meters
Living Area: 204.5 m²
Total Area: 260.4 m²

Metric Area Sizes

Total Area: 260.4 m²

Feet & Inches Area Sizes

Total Area: 2800 Sq. Ft

PERFECT FOR

✔ Large Families
✔ Country Blocks
✔ Acreage Homes
✔ Lifestyle Properties
✔ Modern Family Living
✔ New Home Builds
✔ Entertaining

What's Included in Your Construction Plans / Working Drawings Package

Your professionally prepared Construction Plans (Working Drawings) package includes:

✓ Dimensioned Floor Plans
✓ Exterior Elevations (All Sides)
✓ Building Sections and Construction Details
✓ Roof Plan
✓ Door and Window Schedules
✓ Electrical Layout Plan
✓ Lighting and Power Point Locations
✓ Internal Room Dimensions and Areas
✓ Building Notes and Specifications
✓ Structural Bracing and Tie-Down Details
✓ Footing and Foundation Design (site-specific soil test required)
✓ Licensed Structural Engineering Documentation
✓ 3D Colour Perspectives / Facade Images
✓ Site-Specific Modifications to Suit Your Land and Requirements
✓ PDF Digital Delivery

 Please Note:

• Final footing and slab designs require a site-specific soil test.
• We will contact you after purchase to obtain your building site address and discuss any required modifications.
• Additional council requirements may vary depending on your local authority and building location.

Structural Engineering Included

All plans in this package include structural engineering prepared by a licensed professional engineer.

Please note that final footing and slab designs are specific to your site conditions and require a soil test for the property where you intend to build. Once you provide the building site address, we can assist with obtaining soil test pricing and arranging this service on your behalf.
