Complete Construction Plans & Working Drawings Package – Ready for Building Approval

Free Custom Modifications to Suit Your Land and Lifestyle

Please Note: After purchase, we will contact you to obtain your building site address and confirm any modifications or custom changes required before we commence and complete your plans.

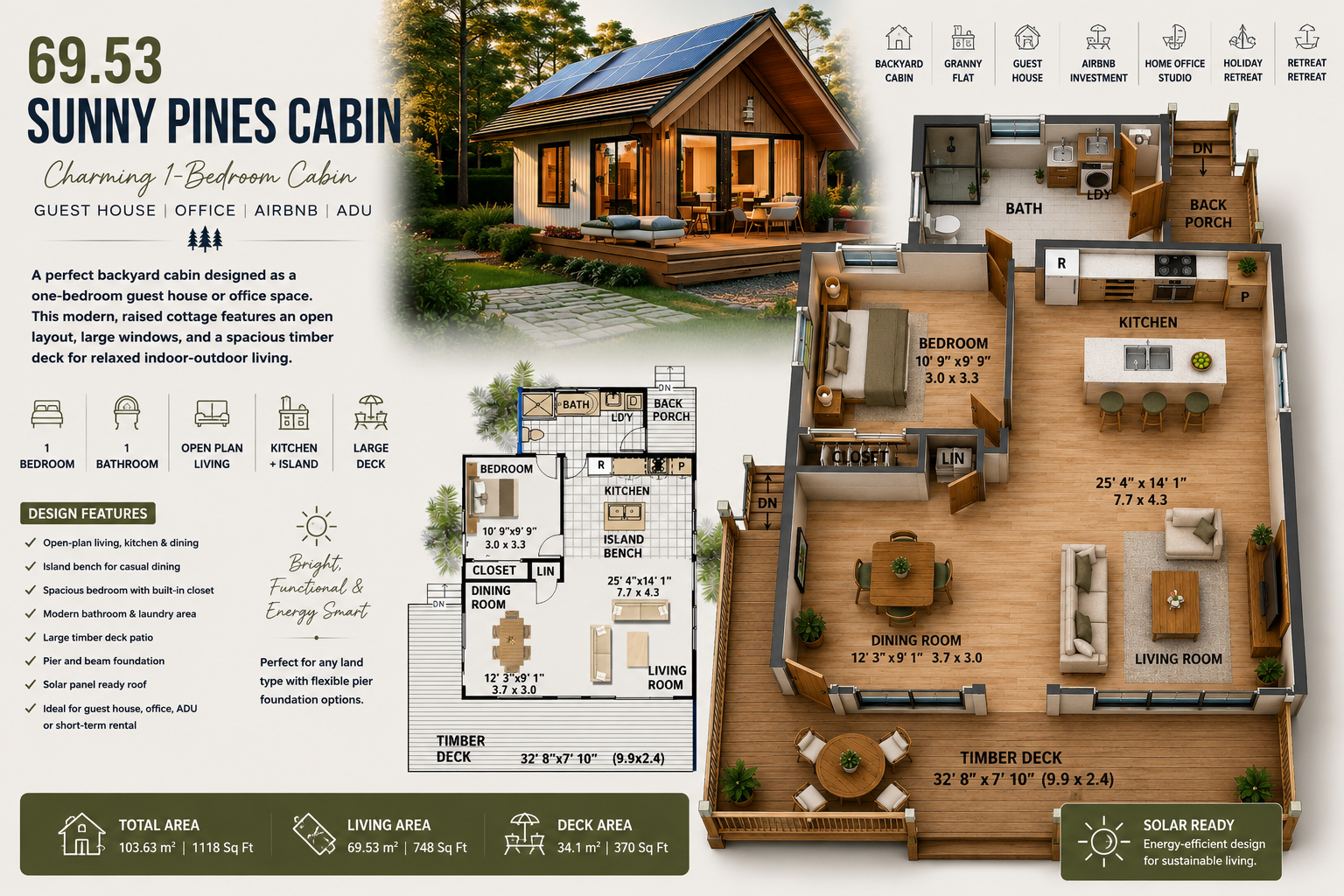

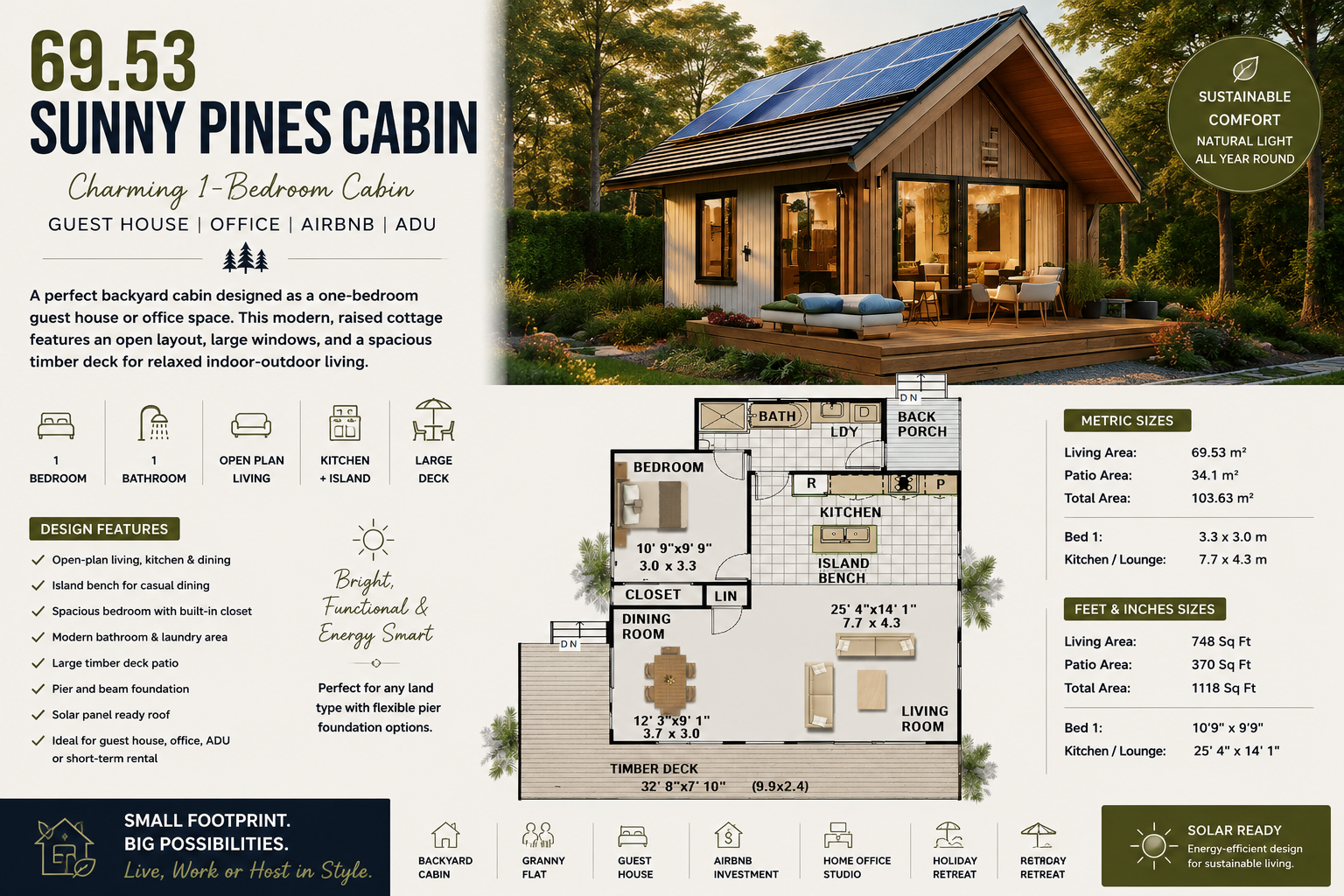

Charming 1 Bedroom Cabin Plan with Large Timber Deck

The 69.53 Sunny Pines Cabin is a modern one-bedroom cabin design created for flexible living. Perfect as a backyard guest house, granny flat, vacation cabin, home office, Airbnb rental, or ADU (Accessory Dwelling Unit), this thoughtfully designed plan combines simple construction with comfortable open-plan living.

Built on an economical pier and beam foundation, the Sunny Pines Cabin is ideal for flat, sloping, rural, or difficult sites. Large windows fill the home with natural light, while the spacious covered timber deck creates the perfect indoor-outdoor lifestyle.

The open living, dining, and kitchen area features a central island bench, providing a practical and welcoming space for everyday living. The generous bedroom, modern bathroom, and dedicated laundry area make this compact home feel surprisingly spacious.

This preliminary house plan set is designed to help you obtain builder quotes, compare pricing, explore design ideas, or use as a starting point for future construction plans.

You can also upgrade to full construction drawings or request modifications to suit your individual requirements.

Plan Features

• 1 Bedroom
• 1 Bathroom
• Open-Plan Living & Kitchen
• Island Bench Kitchen
• Large Living Area
• Spacious Timber Deck Patio
• Laundry Area
• Pier & Beam Foundation Design
• Ideal Guest House, Granny Flat, Airbnb or ADU
• Suitable for Most Land Types
• Solar-Friendly Roof Design

Plan Dimensions

Metric

• Width: Approx. 7.7m
• Length: Approx. 13.5m
• Living Area: 69.53 m²
• Deck Area: 34.10 m²
• Total Area: 103.63 m²

Feet & Inches

• Living Area: 748 Sq Ft
• Deck Area: 370 Sq Ft
• Total Area: 1,118 Sq Ft

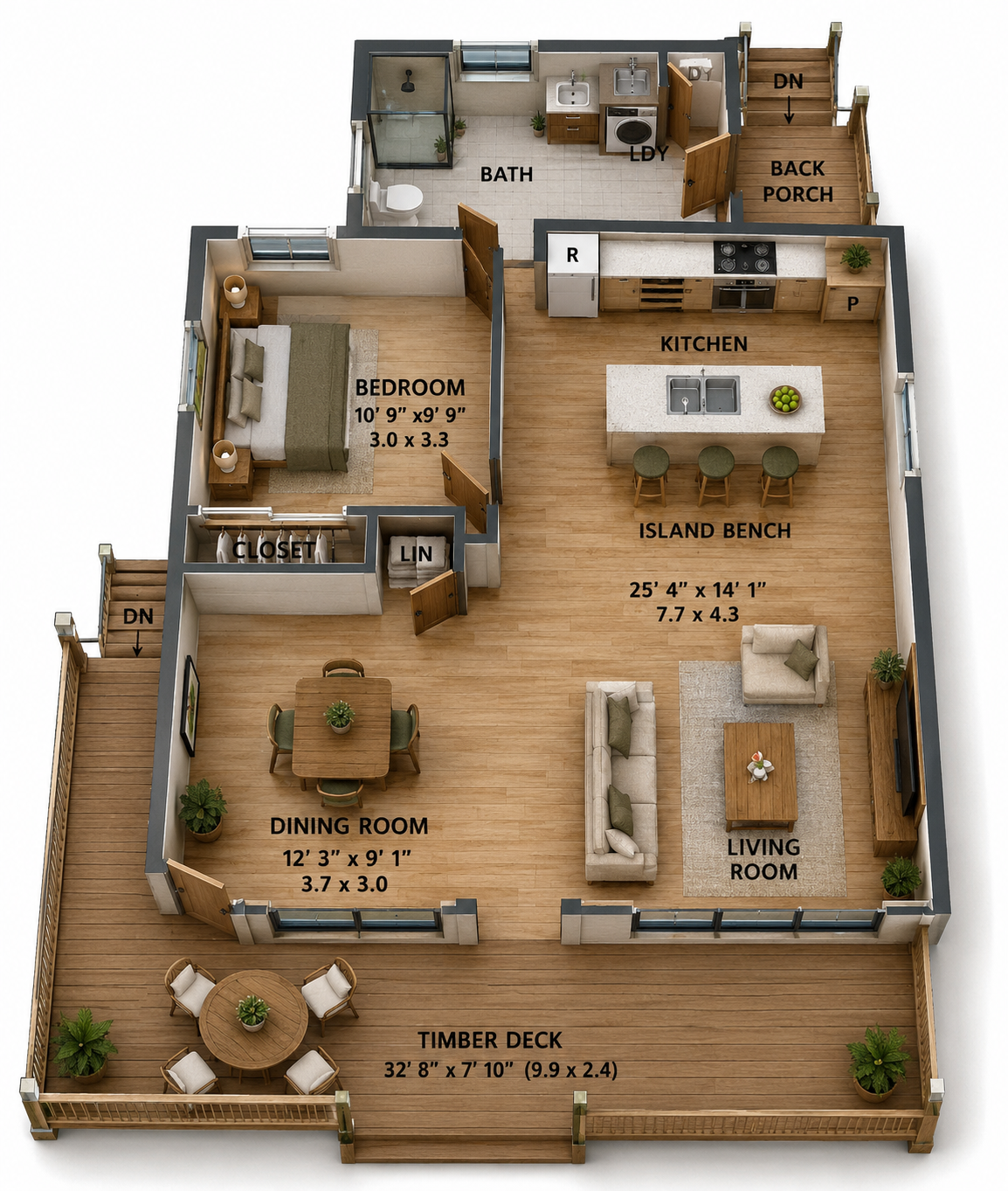

Room Sizes – Metric

• Bedroom: 3.3m × 3.0m
• Kitchen / Living Area: 7.7m × 4.3m

Room Sizes – Feet & Inches

• Bedroom: 10'9" × 9'9"
• Kitchen / Living Area: 25'4" × 14'1"

Perfect for:

• Airbnb Rentals
• Backyard Cabins
• Granny Flats
• Guest Houses
• Vacation Cabins
• Rural Retreats
• Tiny Home Living
• Home Office Studios
• Investment Properties

What's Included in Your Construction Plans / Working Drawings Package

Your professionally prepared Construction Plans (Working Drawings) package includes:

✓ Dimensioned Floor Plans
✓ Exterior Elevations (All Sides)
✓ Building Sections and Construction Details
✓ Roof Plan
✓ Door and Window Schedules
✓ Electrical Layout Plan
✓ Lighting and Power Point Locations
✓ Internal Room Dimensions and Areas
✓ Building Notes and Specifications
✓ Structural Bracing and Tie-Down Details
✓ Footing and Foundation Design (site-specific soil test required)
✓ Licensed Structural Engineering Documentation
✓ 3D Colour Perspectives / Facade Images
✓ Site-Specific Modifications to Suit Your Land and Requirements
✓ PDF Digital Delivery

 Please Note:

• Final footing and slab designs require a site-specific soil test.
• We will contact you after purchase to obtain your building site address and discuss any required modifications.
• Additional council requirements may vary depending on your local authority and building location.

Structural Engineering Included

All plans in this package include structural engineering prepared by a licensed professional engineer.

Please note that final footing and slab designs are specific to your site conditions and require a soil test for the property where you intend to build. Once you provide the building site address, we can assist with obtaining soil test pricing and arranging this service on your behalf.
