196DU Duplex House Plan

The 196DU Duplex House Plan is a smart and affordable dual-occupancy design that combines comfortable family living with excellent investment potential. Featuring a practical 3-bedroom residence alongside a spacious 2-bedroom residence, this versatile duplex is ideal for rental income, multi-generational living, or owner-occupiers looking to maximize their property's value.

Designed with modern lifestyles in mind, each residence offers open-plan living, family-friendly kitchens, private alfresco entertaining areas, and well-appointed bedrooms.

With a total building area of 196.0 m² (2,118 Sq Ft), this duplex provides an efficient layout without compromising on comfort or functionality.

Complete Construction Plans & Working Drawings Package – Ready for Building Approval

Free Custom Modifications to Suit Your Land and Lifestyle

Please Note: After purchase, we will contact you to obtain your building site address and confirm any modifications or custom changes required before we commence and complete your plans.

Plan Features

✔ 5 Bedrooms Total

✔ 4 Bathrooms

✔ 4 Living Areas

✔ 2 Private Alfresco Areas

✔ Family-Friendly Kitchens

✔ Dual Occupancy Design

✔ Open Plan Living

✔ Perfect for Investors

✔ Ideal for Multi-Generational Living

✔ Excellent Rental Potential

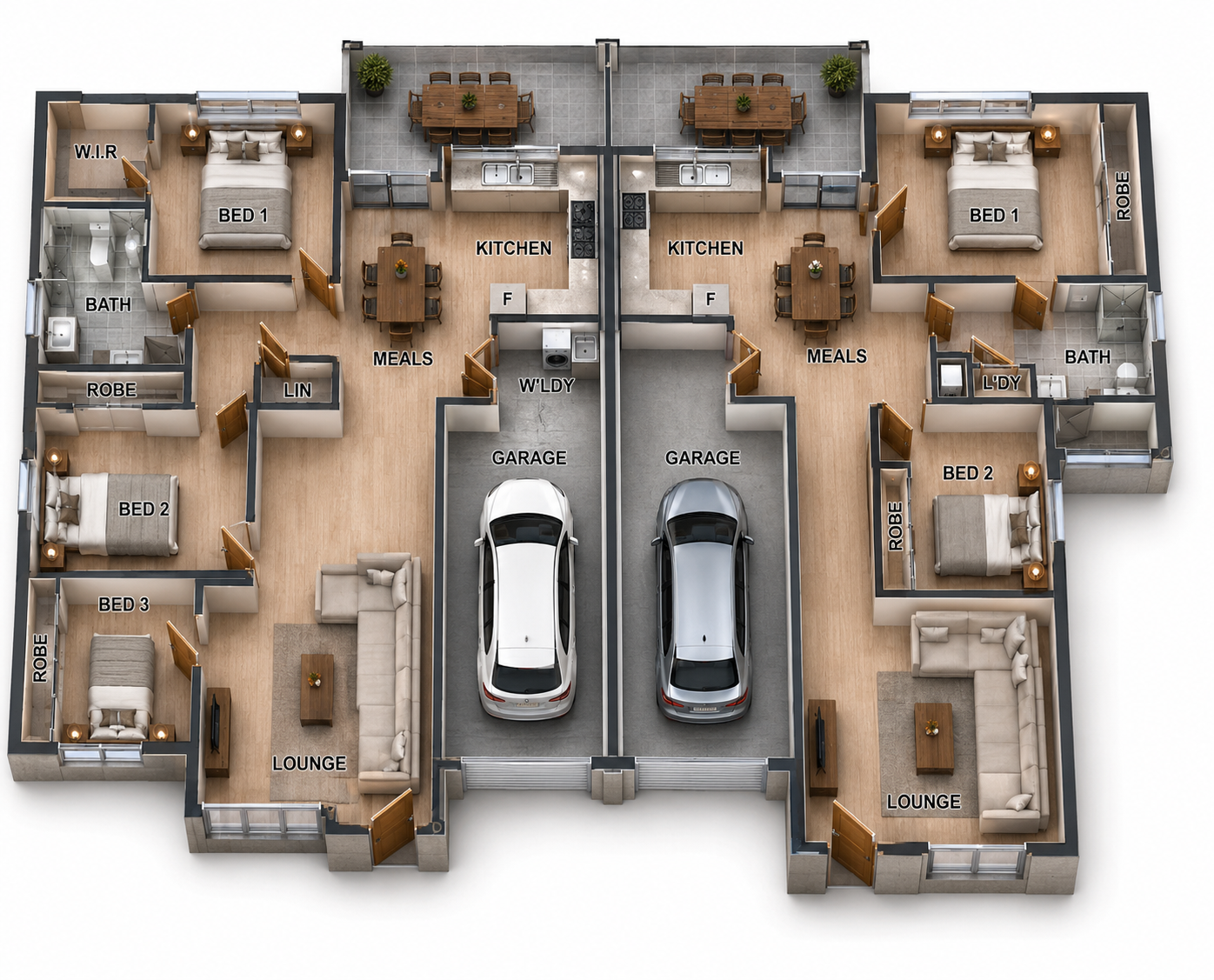

Design Layout

Residence One

• 3 Bedrooms
• 2 Bathrooms
• Open Plan Living & Dining
• Family Kitchen
• Private Alfresco

Residence Two

• 2 Bedrooms
• 2 Bathrooms
• Living Area
• Family Kitchen
• Private Alfresco

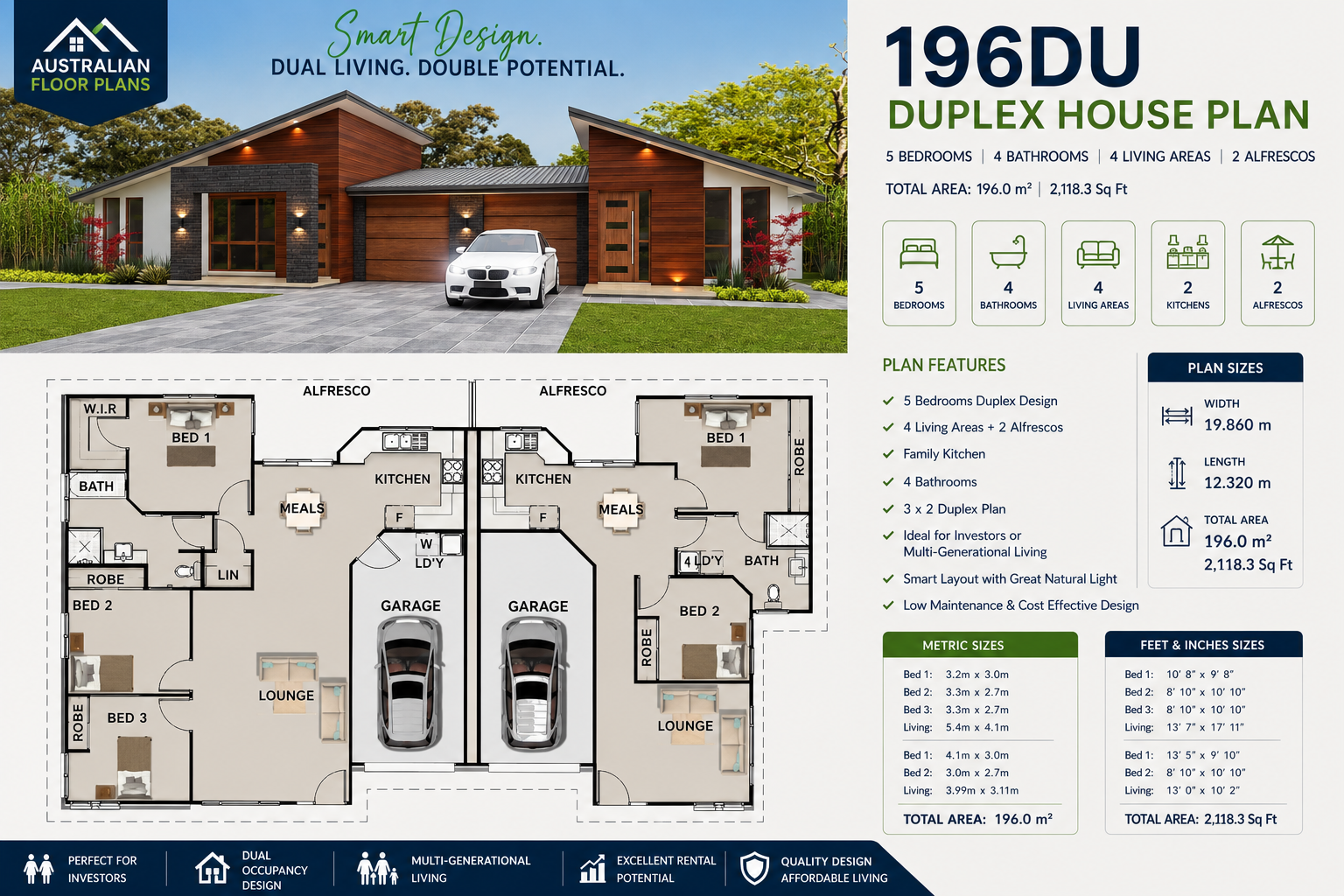

Overall Plan Dimensions

Metric

Width: 19.860 m

Length: 12.320 m

Total Area: 196.0 m²

Imperial

Width: 65.15 Ft

Length: 40.42 Ft

Total Area: 2,118.3 Sq Ft

Metric Room Sizes

Residence One

Bedroom 1: 3.2 m x 3.0 m

Bedroom 2: 3.3 m x 2.7 m

Bedroom 3: 3.3 m x 2.7 m

Living Room: 5.4 m x 4.1 m

Residence Two

Bedroom 1: 4.1 m x 3.0 m

Bedroom 2: 3.0 m x 2.7 m

Living Room: 3.99 m x 3.11 m

Feet & Inches Room Sizes

Residence One

Bedroom 1: 10' 8" x 9' 8"

Bedroom 2: 10' 10" x 8' 10"

Bedroom 3: 10' 10" x 8' 10"

Living Room: 17' 11" x 13' 7"

Residence Two

Bedroom 1: 13' 5" x 9' 10"

Bedroom 2: 10' 10" x 8' 10"

Living Room: 13' 0" x 10' 2"

Perfect For

• Duplex Developments
• Investment Properties
• Rental Income Opportunities
• Multi-Generational Living
• First-Time Investors
• Owner Builders
• Property Developers

What's Included in Your Construction Plans / Working Drawings Package

Your professionally prepared Construction Plans (Working Drawings) package includes:

✓ Dimensioned Floor Plans
✓ Exterior Elevations (All Sides)
✓ Building Sections and Construction Details
✓ Roof Plan
✓ Door and Window Schedules
✓ Electrical Layout Plan
✓ Lighting and Power Point Locations
✓ Internal Room Dimensions and Areas
✓ Building Notes and Specifications
✓ Structural Bracing and Tie-Down Details
✓ Footing and Foundation Design (site-specific soil test required)
✓ Licensed Structural Engineering Documentation
✓ 3D Colour Perspectives / Facade Images
✓ Site-Specific Modifications to Suit Your Land and Requirements
✓ PDF Digital Delivery

 Please Note:

• Final footing and slab designs require a site-specific soil test.
• We will contact you after purchase to obtain your building site address and discuss any required modifications.
• Additional council requirements may vary depending on your local authority and building location.

Structural Engineering Included

All plans in this package include structural engineering prepared by a licensed professional engineer.

Please note that final footing and slab designs are specific to your site conditions and require a soil test for the property where you intend to build. Once you provide the building site address, we can assist with obtaining soil test pricing and arranging this service on your behalf.
