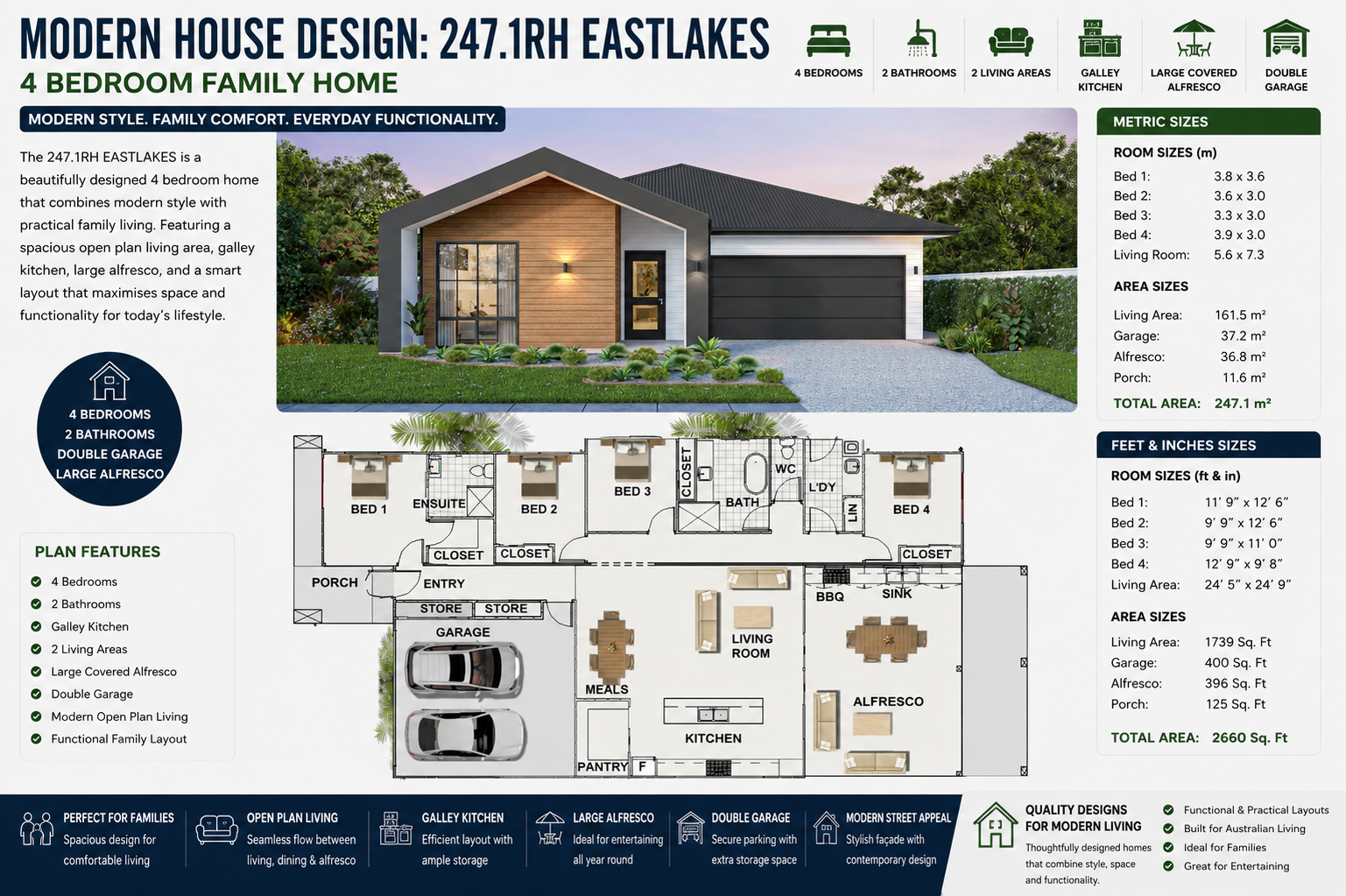

Modern House Design – 247.1RH EASTLAKES | 4 Bedroom Family Home Plan

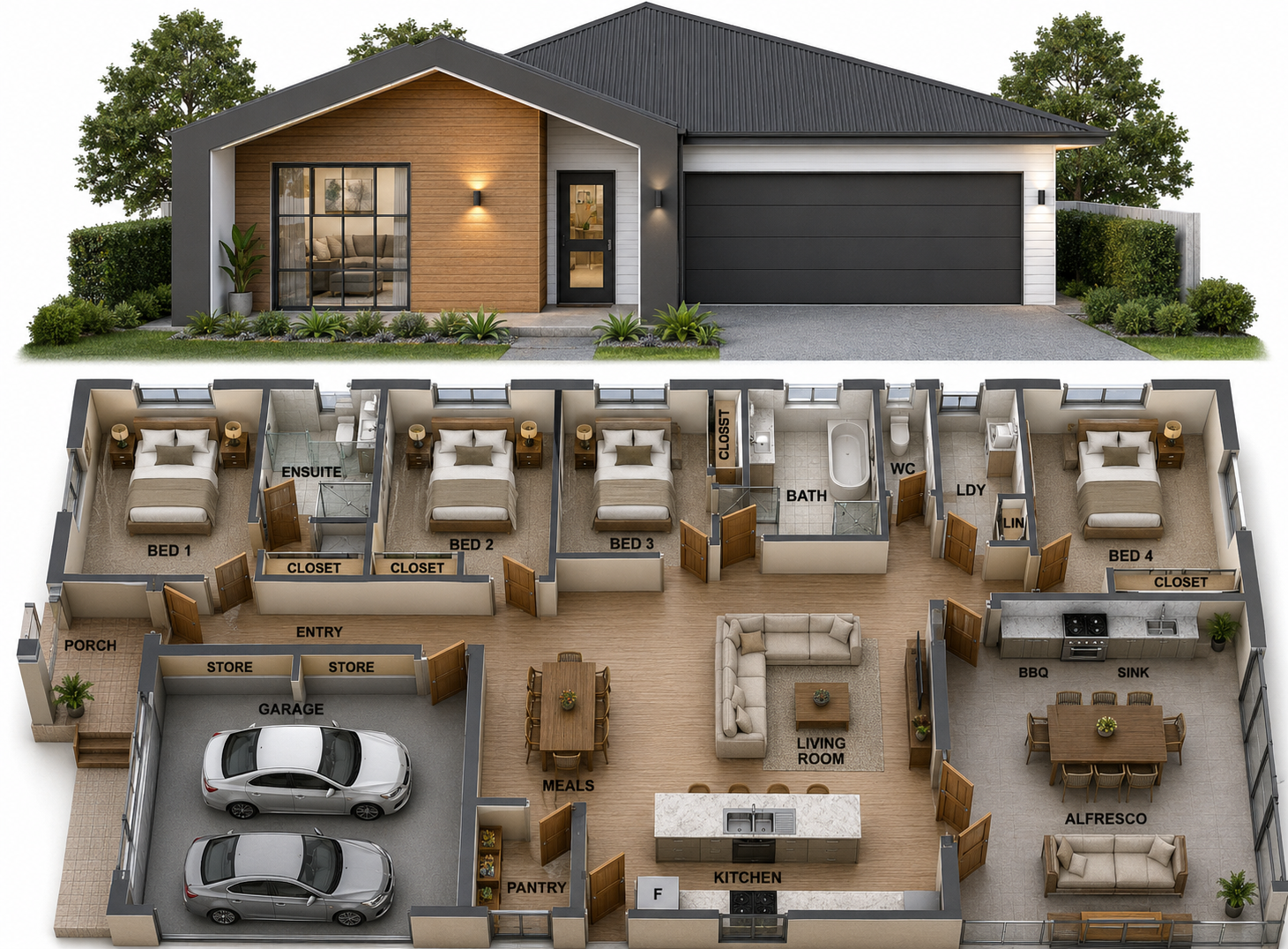

The 247.1RH EASTLAKES is a stylish modern family home designed for comfortable everyday living and effortless entertaining. Featuring 4 bedrooms, 2 bathrooms, a large open-plan living area, and a spacious covered alfresco, this design is ideal for growing families, suburban blocks, or investment projects.

With its practical galley kitchen, generous family spaces, and seamless indoor-outdoor flow, the EASTLAKES design combines functionality with contemporary Australian style.

Complete Construction Plans & Working Drawings Package – Ready for Building Approval

Free Custom Modifications to Suit Your Land and Lifestyle

 Please Note: After purchase, we will contact you to obtain your building site address and confirm any modifications or custom changes required before we commence and complete your plans.

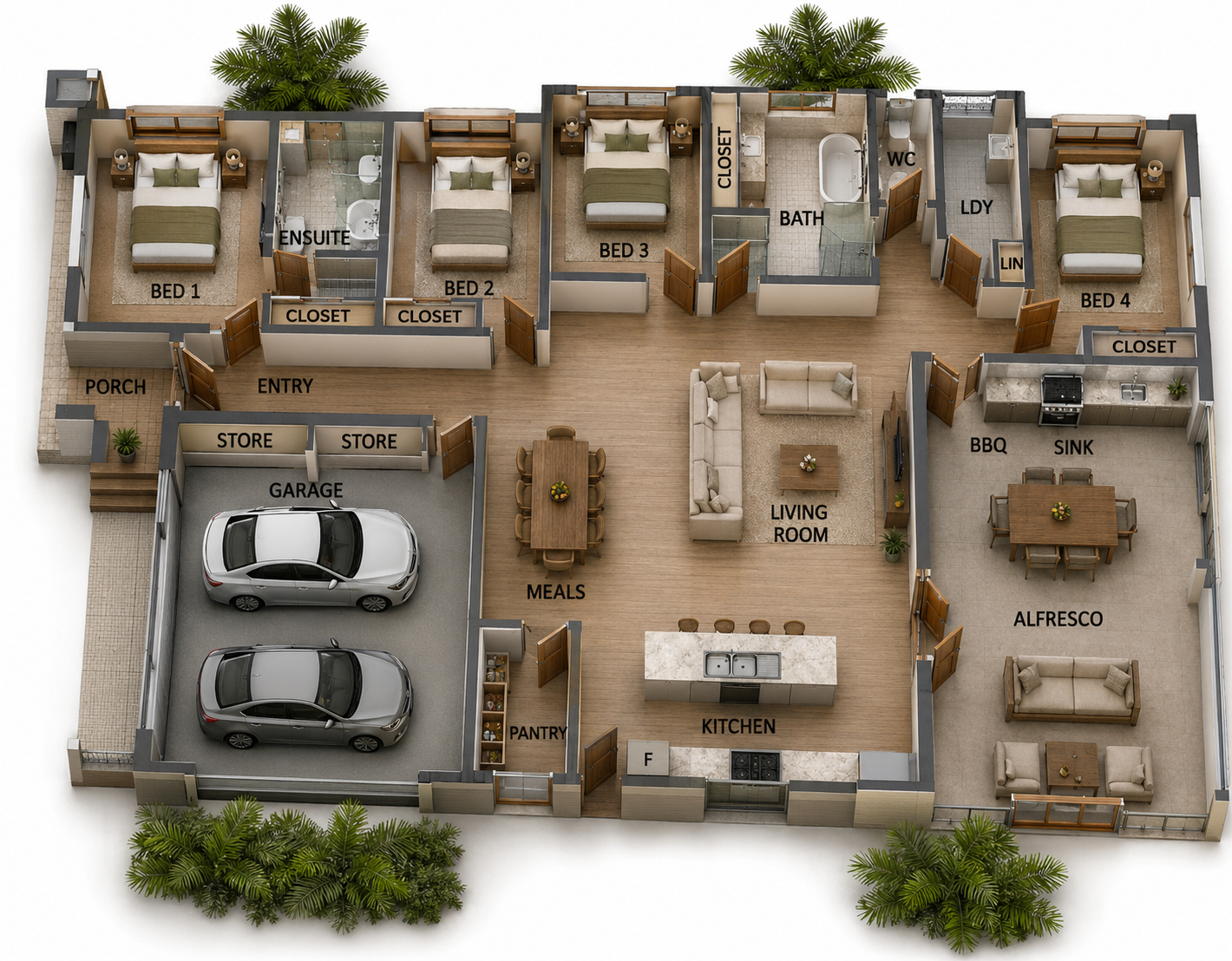

Plan Features

• 4 Bedroom Home Design
• 2 Bathrooms
• Large Open Living Area
• Modern Galley Kitchen
• Covered Alfresco / Outdoor Entertaining Area
• Double Garage
• Spacious Family-Friendly Layout
• Contemporary Modern Design

Metric Room Sizes

• Bed 1: 3.8 x 3.6 m
• Bed 2: 3.6 x 3.0 m
• Bed 3: 3.3 x 3.0 m
• Bed 4: 3.9 x 3.0 m
• Living Room: 5.6 x 7.3 m

Metric Area Sizes

• Living Area: 161.5 m²
• Garage: 37.2 m²
• Alfresco: 36.8 m²
• Porch: 11.6 m²
• Total Area: 247.1 m²

Feet & Inches Room Sizes

• Bed 1: 11' 9” x 12' 6”
• Bed 2: 9' 9” x 12' 6”
• Bed 3: 9' 9” x 11' 0”
• Bed 4: 12' 9” x 9' 8”
• Living Area: 24' 5” x 24' 9”

Feet & Inches Area Sizes

• Living Area: 1739 Sq. Ft
• Garage: 400 Sq. Ft
• Alfresco: 396 Sq. Ft
• Porch: 125 Sq. Ft
• Total Area: 2660 Sq. Ft

Perfect For

• Modern Family Homes
• New Home Builds
• Suburban & Lifestyle Blocks
• Investment Properties
• Owner Builders
• Australian Family Living

What's Included in Your Construction Plans / Working Drawings Package

Your professionally prepared Construction Plans (Working Drawings) package includes:

✓ Dimensioned Floor Plans
✓ Exterior Elevations (All Sides)
✓ Building Sections and Construction Details
✓ Roof Plan
✓ Door and Window Schedules
✓ Electrical Layout Plan
✓ Lighting and Power Point Locations
✓ Internal Room Dimensions and Areas
✓ Building Notes and Specifications
✓ Structural Bracing and Tie-Down Details
✓ Footing and Foundation Design (site-specific soil test required)
✓ Licensed Structural Engineering Documentation
✓ 3D Colour Perspectives / Facade Images
✓ Site-Specific Modifications to Suit Your Land and Requirements
✓ PDF Digital Delivery

 Please Note:

• Final footing and slab designs require a site-specific soil test.
• We will contact you after purchase to obtain your building site address and discuss any required modifications.
• Additional council requirements may vary depending on your local authority and building location.

Structural Engineering Included

All plans in this package include structural engineering prepared by a licensed professional engineer.

Please note that final footing and slab designs are specific to your site conditions and require a soil test for the property where you intend to build. Once you provide the building site address, we can assist with obtaining soil test pricing and arranging this service on your behalf.
