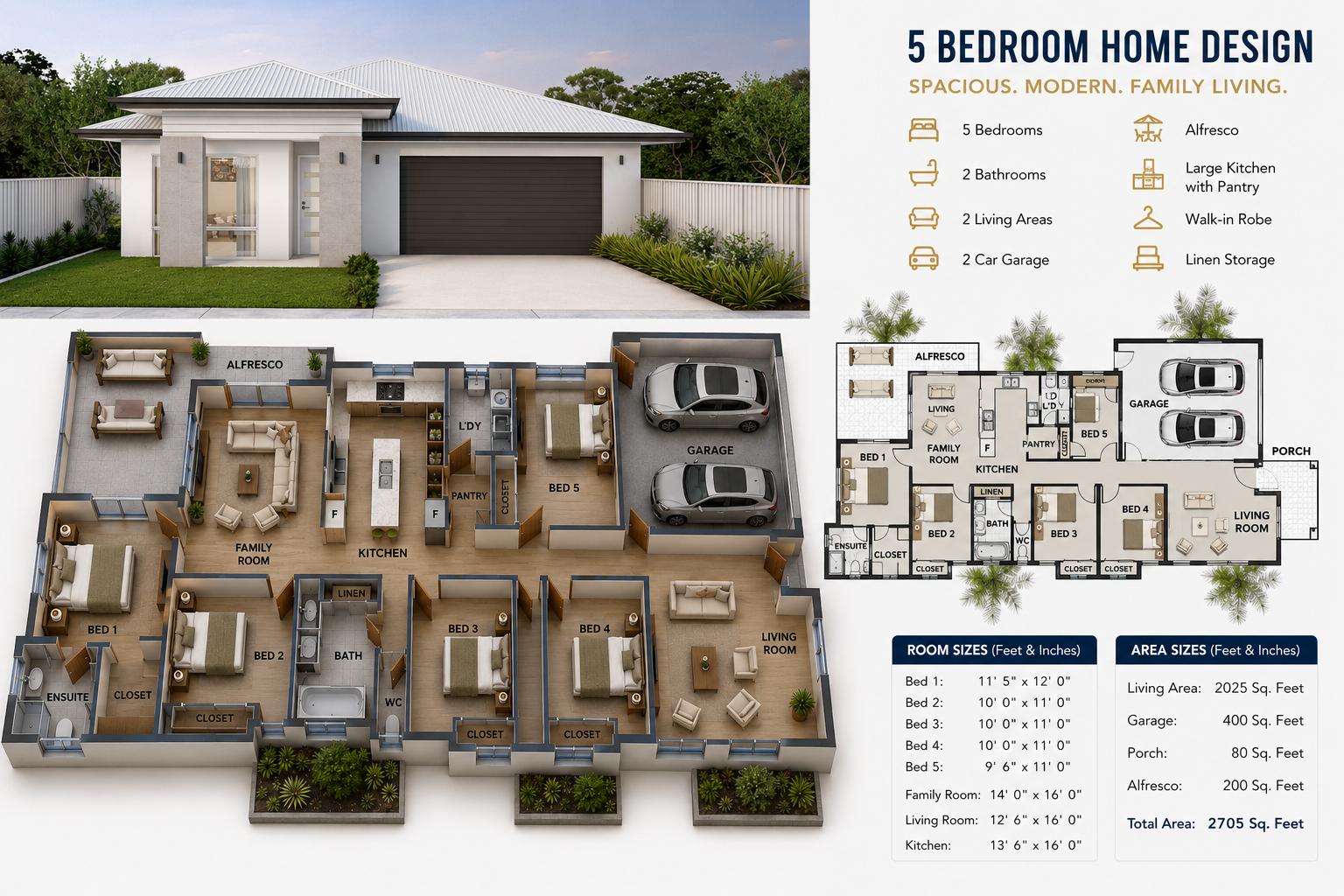

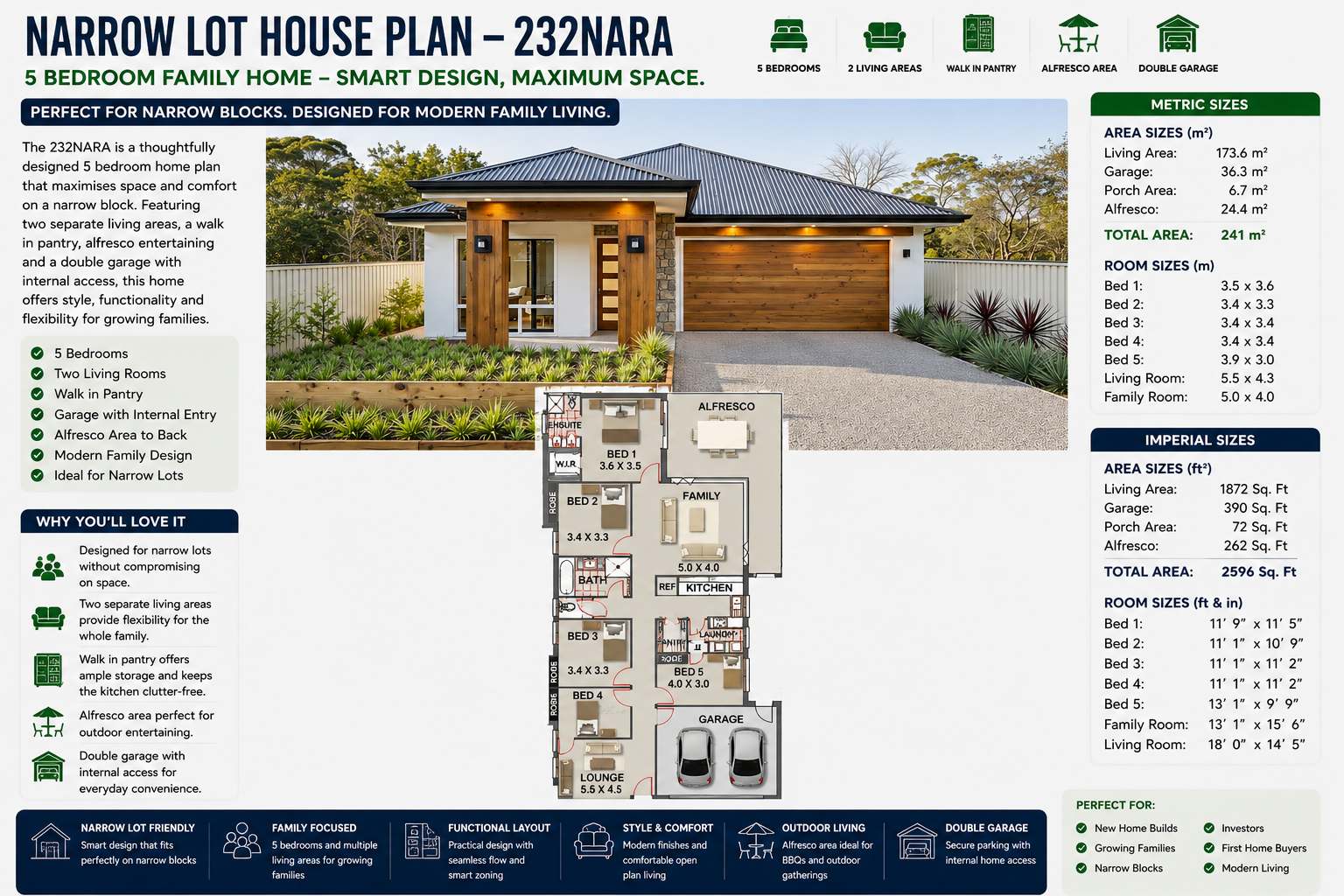

232NARA – Modern Narrow Lot 5 Bedroom House Plan

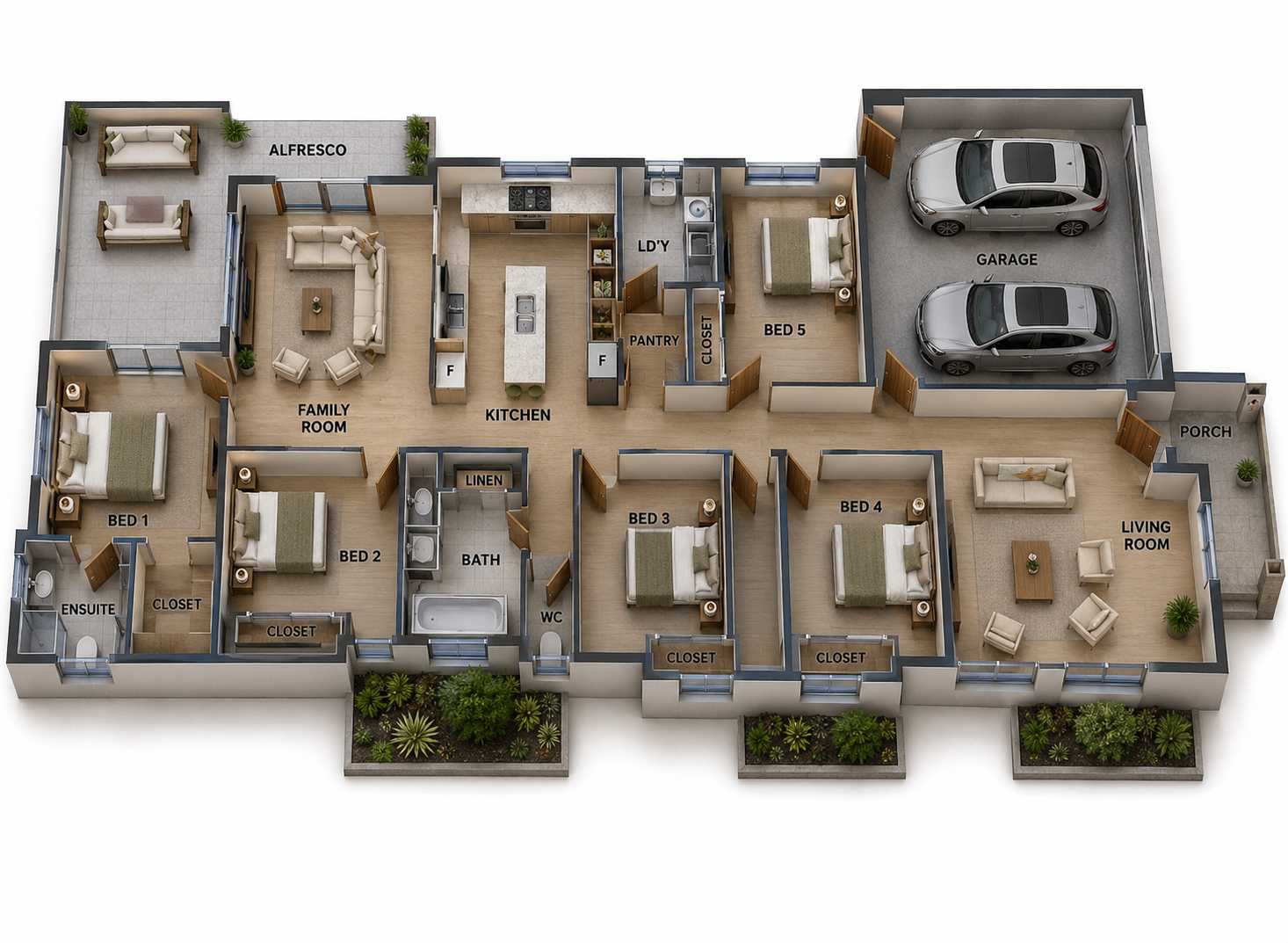

Designed for modern family living on a narrow block, the 232NARA House Plan combines spacious open-plan living with practical functionality. Featuring 5 bedrooms, two separate living zones, a walk-in pantry, and a covered alfresco area, this design is ideal for growing families needing extra space without requiring a wide lot.

The clever layout maximises every square metre while maintaining a bright and open feel throughout the home.

KEY FEATURES

✔ 5 Bedrooms
✔ 2 Separate Living Rooms
✔ Walk-In Pantry
✔ Open Plan Kitchen + Meals Area
✔ Garage with Internal Entry
✔ Covered Rear Alfresco
✔ Designed for Narrow Lots
✔ Ideal for Family Living

Metric Area Sizes

Total Area: 241 m²

Metric Room Sizes

Bed 1: 3.5 x 3.6 m
Bed 2: 3.4 x 3.3 m
Bed 3: 3.4 x 3.4 m
Bed 4: 3.4 x 3.4 m
Bed 5: 3.9 x 3.0 m

Living Room: 5.5 x 4.3 m
Family Room: 5.0 x 4.0 m

Feet & Inches Area Sizes

Total Area: 2596 Sq. Ft

Feet & Inches Room Sizes

Bed 1: 11' 9” x 11' 5”
Bed 2: 11' 1” x 10' 9”
Bed 3: 11' 1” x 11' 2”
Bed 4: 11' 1” x 11' 2”
Bed 5: 13' 1” x 9' 9”

Family Room: 13' 1” x 15' 6”
Living Room: 18' 0” x 14' 5”

Perfect For:

• Narrow Lots
• Modern Family Homes
• Investment Builds
• New Home Builders
• Growing Families
• Lifestyle Living

What's Included in Your Construction Plans / Working Drawings Package

Your professionally prepared Construction Plans (Working Drawings) package includes:

✓ Dimensioned Floor Plans
✓ Exterior Elevations (All Sides)
✓ Building Sections and Construction Details
✓ Roof Plan
✓ Door and Window Schedules
✓ Electrical Layout Plan
✓ Lighting and Power Point Locations
✓ Internal Room Dimensions and Areas
✓ Building Notes and Specifications
✓ Structural Bracing and Tie-Down Details
✓ Footing and Foundation Design (site-specific soil test required)
✓ Licensed Structural Engineering Documentation
✓ 3D Colour Perspectives / Facade Images
✓ Site-Specific Modifications to Suit Your Land and Requirements
✓ PDF Digital Delivery

 Please Note:

• Final footing and slab designs require a site-specific soil test.
• We will contact you after purchase to obtain your building site address and discuss any required modifications.
• Additional council requirements may vary depending on your local authority and building location.

Structural Engineering Included

All plans in this package include structural engineering prepared by a licensed professional engineer.

Please note that final footing and slab designs are specific to your site conditions and require a soil test for the property where you intend to build. Once you provide the building site address, we can assist with obtaining soil test pricing and arranging this service on your behalf.
