Narrow Lot House Plans | 300 CATERPILLAR | 5 Bedroom Double Storey Home Design | 2890 Sq Ft

Narrow Lot House Plans | 300 CATERPILLAR | 5 Bedroom Double Storey Home Design | 2890 Sq Ft

Complete Construction Plans & Working Drawings Package – Ready for Building Approval

Free Custom Modifications to Suit Your Land and Lifestyle

 Please Note: After purchase, we will contact you to obtain your building site address and confirm any modifications or custom changes required before we commence and complete your plans.

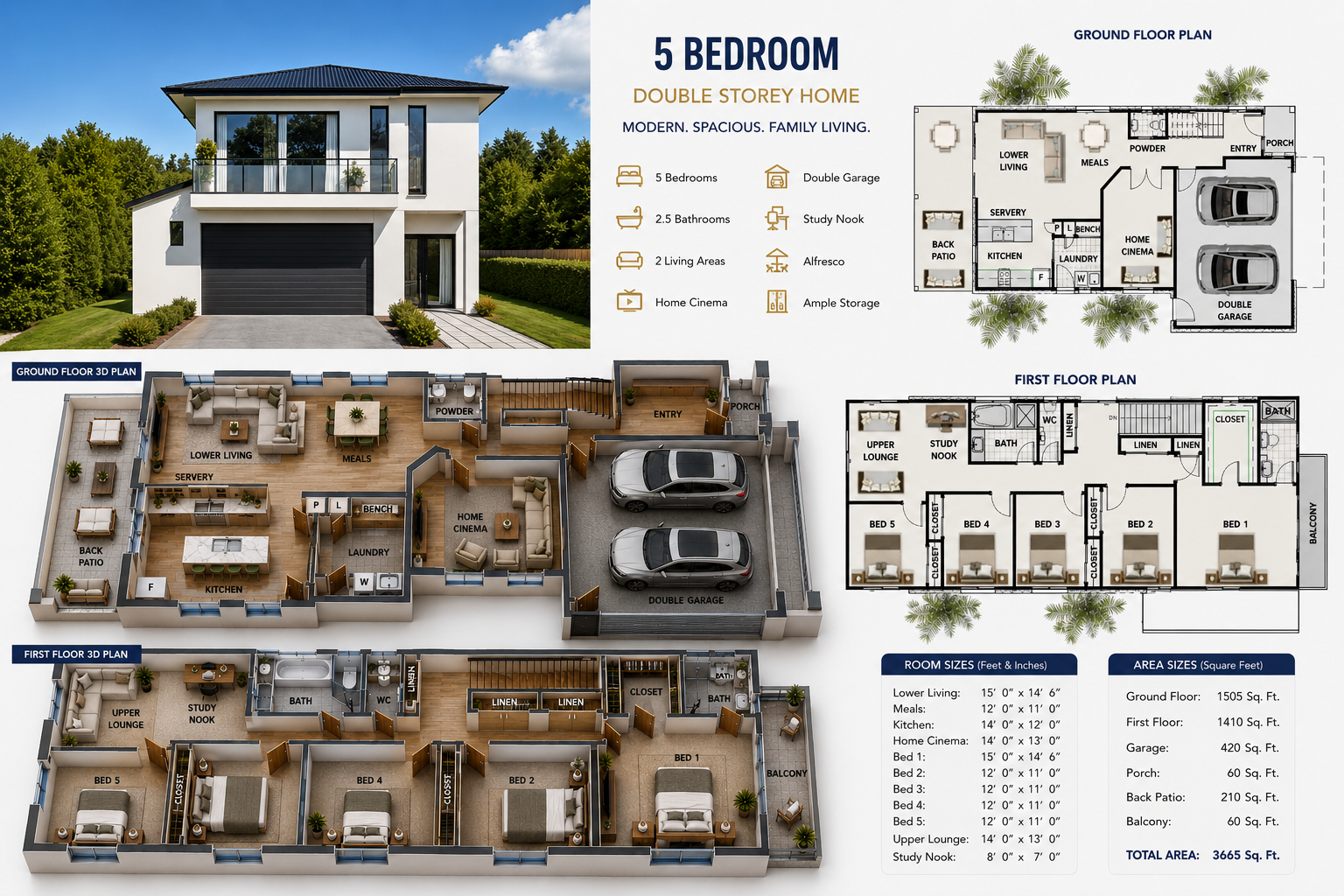

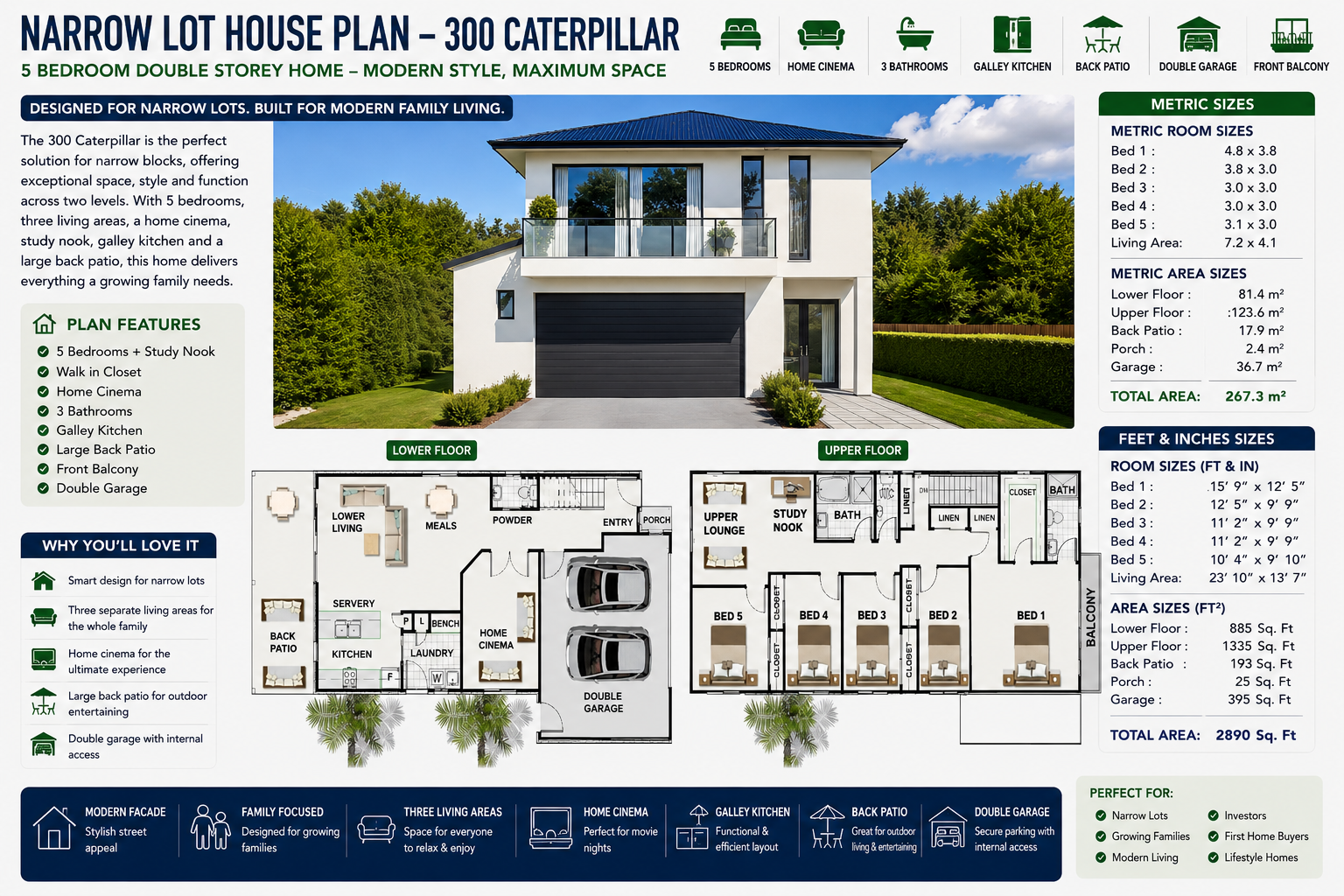

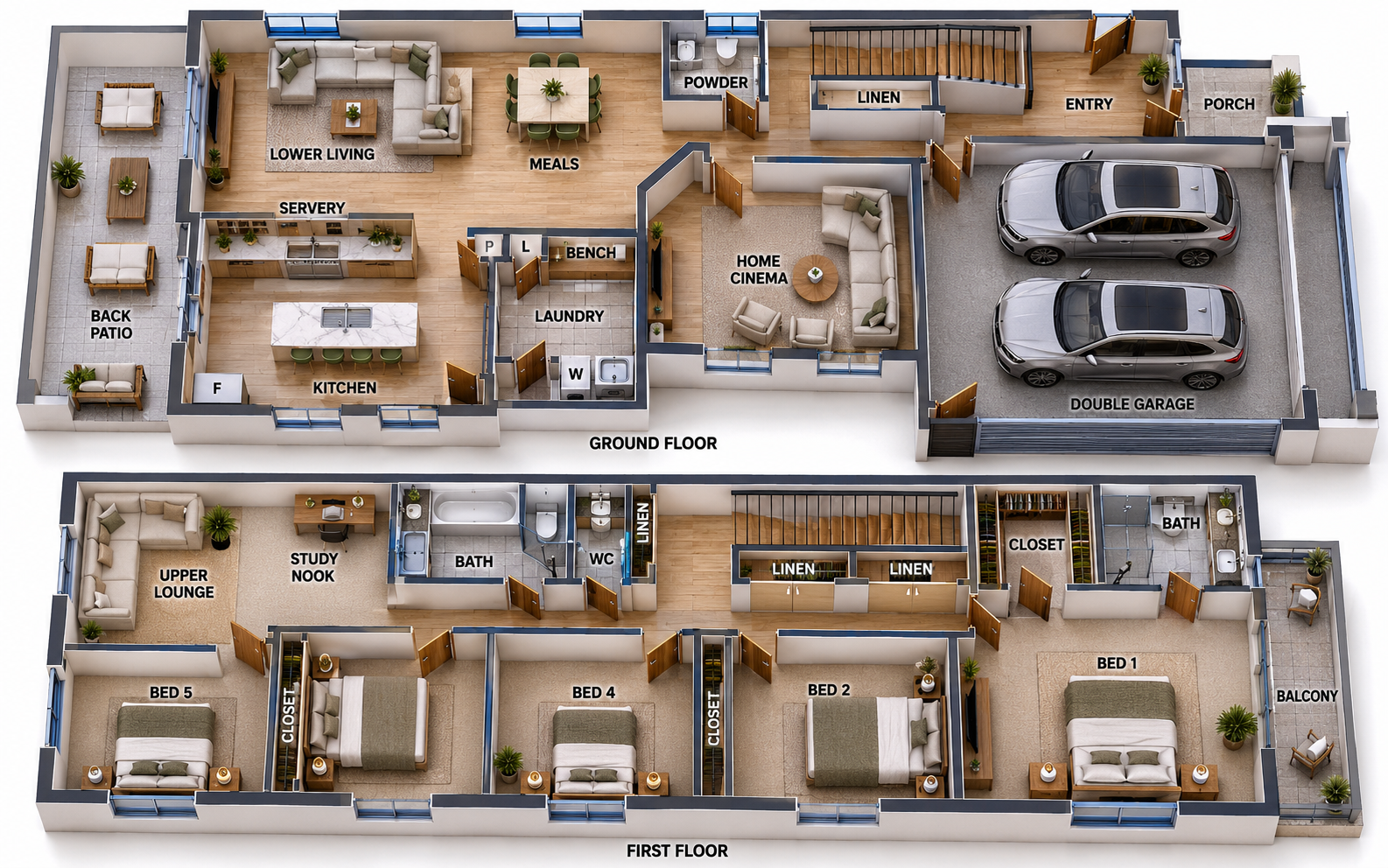

The 300 CATERPILLAR is a spacious double-storey narrow lot home designed for modern family living. Featuring 5 bedrooms, 3 bathrooms, a home cinema, study nook, large open-plan living, and a stunning rear patio, this design delivers exceptional comfort and functionality while maximising narrow block space.

With stylish modern architecture and smart zoning over two levels, this home is ideal for growing families who need space without sacrificing style.

KEY FEATURES

✔ 5 Bedrooms
✔ Study Nook
✔ Walk-In Closet to Master Bedroom
✔ Home Cinema Room
✔ 3 Bathrooms
✔ Large Galley Kitchen
✔ Open Plan Living Design
✔ Large Covered Rear Patio
✔ Front Balcony
✔ Double Garage

PLAN FEATURES

• Narrow Lot Double Storey Home
• Spacious Family Living Areas
• Large Master Suite with Walk-In Closet
• Modern Kitchen Layout
• Rear Entertaining Patio
• Internal Garage Access
• Contemporary Family Design

Metric Room Sizes

Bed 1: 4.8 x 3.8 m
Bed 2: 3.8 x 3.0 m
Bed 3: 3.0 x 3.0 m
Bed 4: 3.0 x 3.0 m
Bed 5: 3.1 x 3.0 m

Living Area: 7.2 x 4.1 m

Metric Area Sizes

Total Area: 267.3 m²

Feet & Inches Room Sizes

Bed 1: 15' 9” x 12' 5”
Bed 2: 12' 5” x 9' 9”
Bed 3: 11' 2” x 9' 9”
Bed 4: 11' 2” x 9' 9”
Bed 5: 10' 4” x 9' 10”

Living Area: 23' 10” x 13' 7”

Feet & Inches Area Sizes

Total Area: 2890 Sq. Ft

PERFECT FOR

✔ Narrow Blocks
✔ Modern Family Homes
✔ Large Families
✔ New Home Builds
✔ Contemporary Living
✔ Investment Properties
✔ Growing Families

What's Included in Your Construction Plans / Working Drawings Package

Your professionally prepared Construction Plans (Working Drawings) package includes:

✓ Dimensioned Floor Plans
✓ Exterior Elevations (All Sides)
✓ Building Sections and Construction Details
✓ Roof Plan
✓ Door and Window Schedules
✓ Electrical Layout Plan
✓ Lighting and Power Point Locations
✓ Internal Room Dimensions and Areas
✓ Building Notes and Specifications
✓ Structural Bracing and Tie-Down Details
✓ Footing and Foundation Design (site-specific soil test required)
✓ Licensed Structural Engineering Documentation
✓ 3D Colour Perspectives / Facade Images
✓ Site-Specific Modifications to Suit Your Land and Requirements
✓ PDF Digital Delivery

 Please Note:

• Final footing and slab designs require a site-specific soil test.
• We will contact you after purchase to obtain your building site address and discuss any required modifications.
• Additional council requirements may vary depending on your local authority and building location.

Structural Engineering Included

All plans in this package include structural engineering prepared by a licensed professional engineer.

Please note that final footing and slab designs are specific to your site conditions and require a soil test for the property where you intend to build. Once you provide the building site address, we can assist with obtaining soil test pricing and arranging this service on your behalf.
